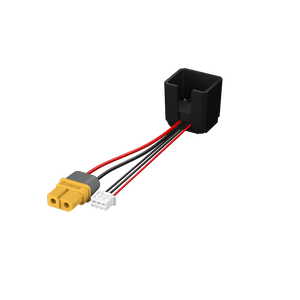

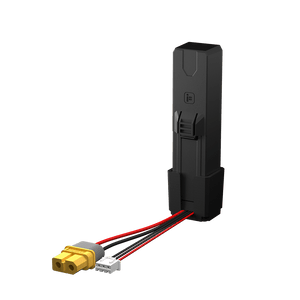

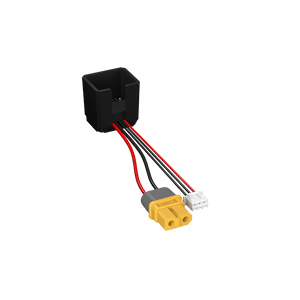

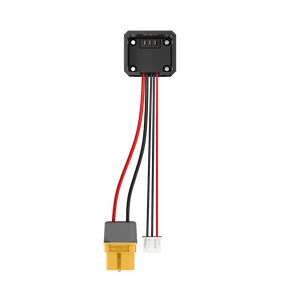

Product: Defender 20 Battery Charging Adapter

Applicable batteries: Defender 20 Lite 600mAh 2S(not compatible with other batteries)

Operating Temperature Range: 5°C to 40°C

Input voltage: 8.4V

Output current: 3A(MAX)

Size: 24*21.5*25mm

Weight: 13±2g

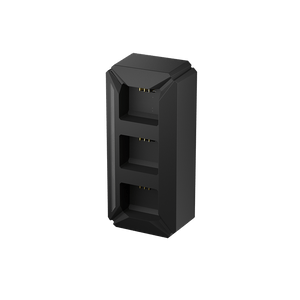

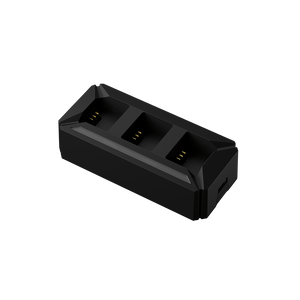

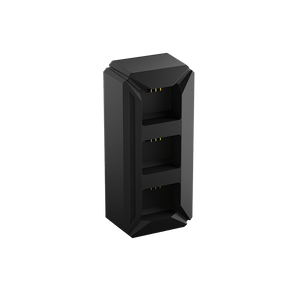

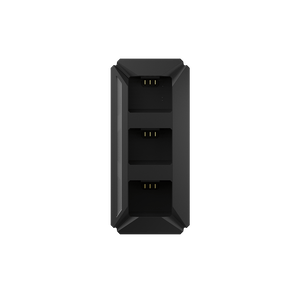

Product: 3-Port Charging Hub

Applicable batteries: Defender 20 Lite 600mAh 2S(not compatible with other batteries)

Operating Temperature Range: 5°C to 40°C

Input voltage: 9-20V

Input current: 2.25A

Output current: 8.4V (single channel)

Output current: 1.5A (MAX) (single channel)

Balance current: 120mA (single channel)

Size: 87*40*23mm

Weight: 40±2g

Charger interface: Type-C

It can charge three batteries at the same time, with a single channel maximum of 15W and three channels of 45W.

Recommended to use iFlight 100W or another USB charger that supports PD3.0 fast charging protocol. If the charger used with the Defender 20 Battery 3-Port Charging Adapter is not a PD3.0 charger, it will not be able to supply power to the charging adapter at full power.

When charging, the LED flashes to indicate that the battery is charging; the LED flashes at intervals to indicate that the battery is waiting to be connected or in an abnormal state; the LED Solid indicates that the battery is fully charged.

In addition, the charging mode of the charging adapter will be different under different voltages:

(1) When the input is 5V, only the first LED will light up, indicating that the first channel can be charged normally; the maximum charging power is 5V3A

(2) When the input is 9V, only the second LED will light up, indicating that the second channel can be charged normally; the maximum charging power is 9V2A

(3) When the input is 12V-15V, the first and second LEDs will light up, indicating that the first and second channels can be charged normally; the maximum charging power is 15V2A

(4) When the input is higher than 15V, the indicator lights of the three LEDs will light up, indicating that all three channels can be charged normally. The maximum charging power is 20V2.25A

1 x Defender 20 Lite Battery Charging Adapter (Optional)

Safety Reminder: Supervise the battery charging process at all times and ensure to keep away from flammable materials. Improper charging may cause fire, and disassembling, damaging, using damaged batteries, or exposure to fire may lead to explosion. To ensure safety, please regularly check the battery's condition and stop using it immediately if any abnormalities are found.

Disclaimer: Users must carefully read and follow the safety instructions before using this product; any consequences resulting from improper use are the user's responsibility.
