The KING of Long Range FPV! A super-efficient iFlight 9 inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the Swiss alps if you want! Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended for slow cruising.

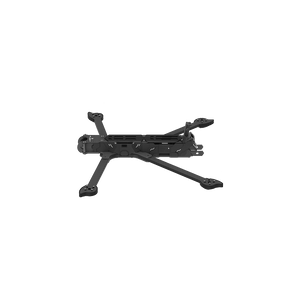

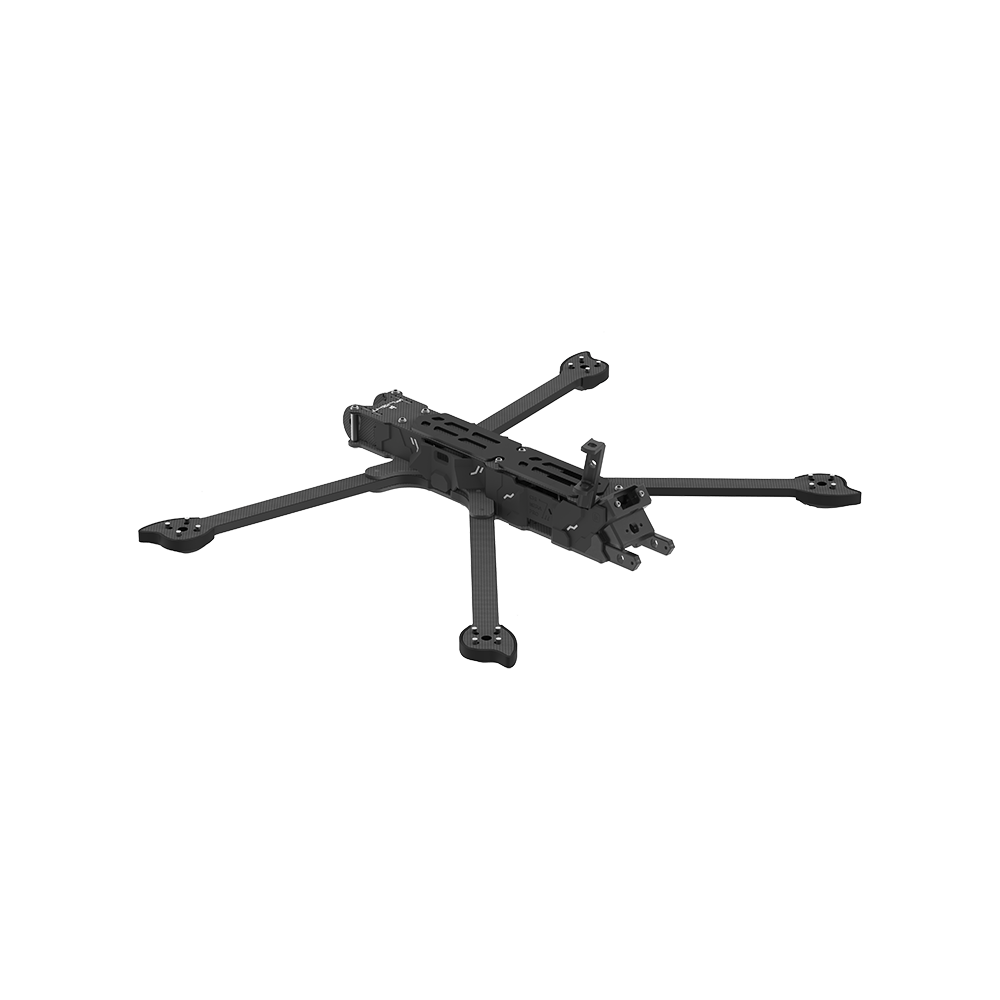

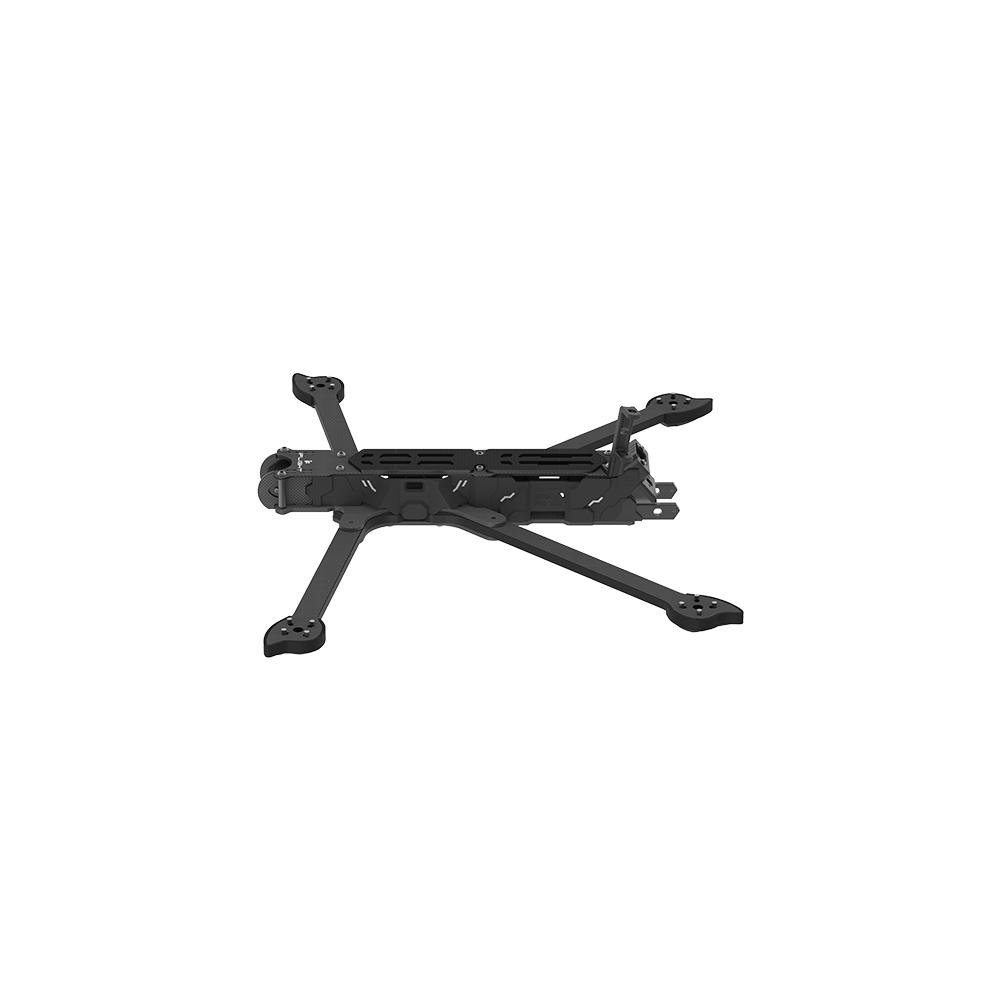

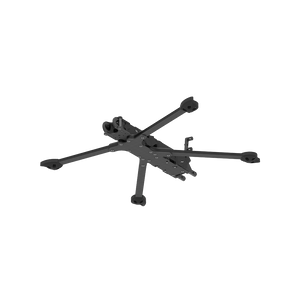

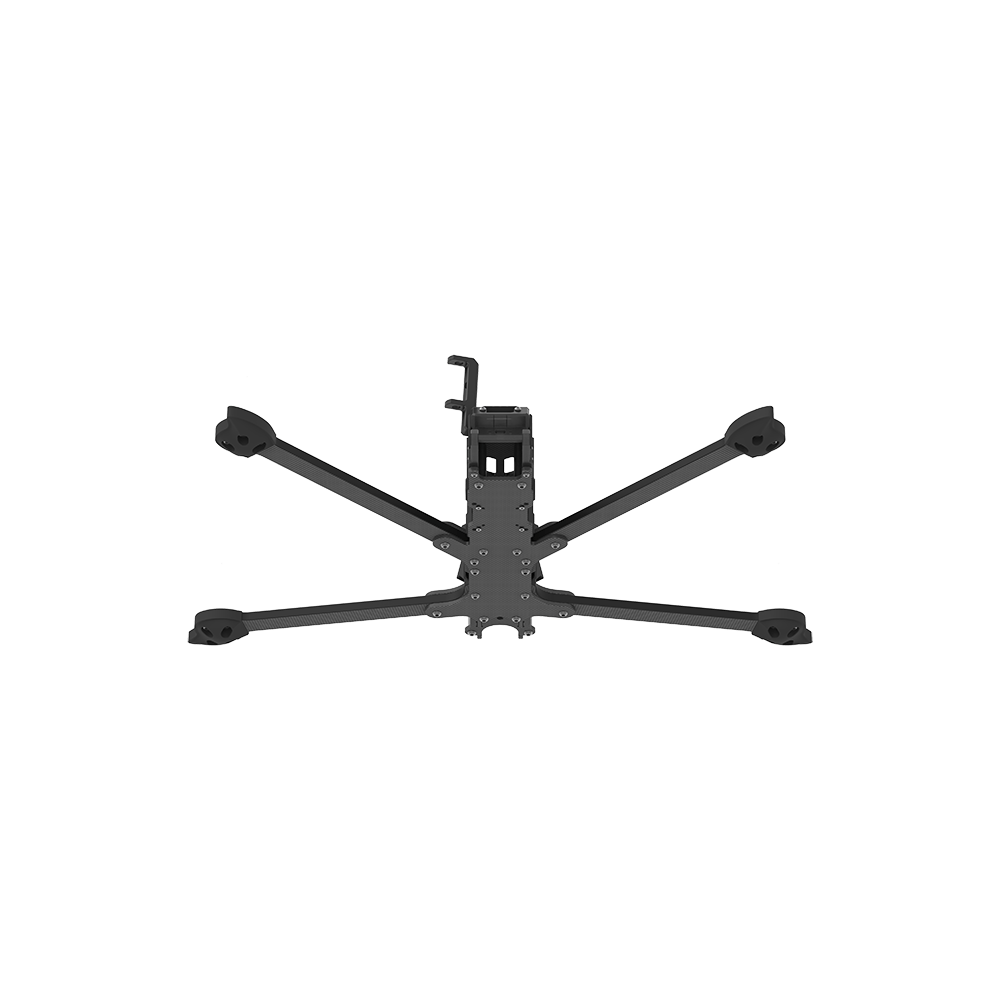

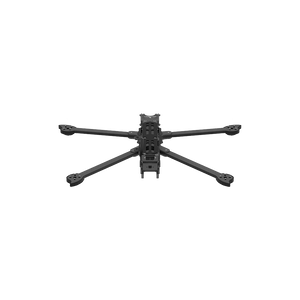

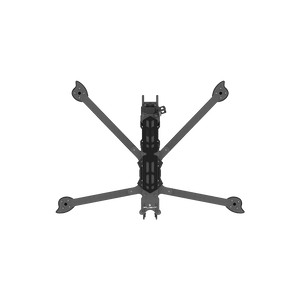

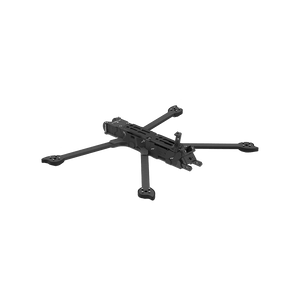

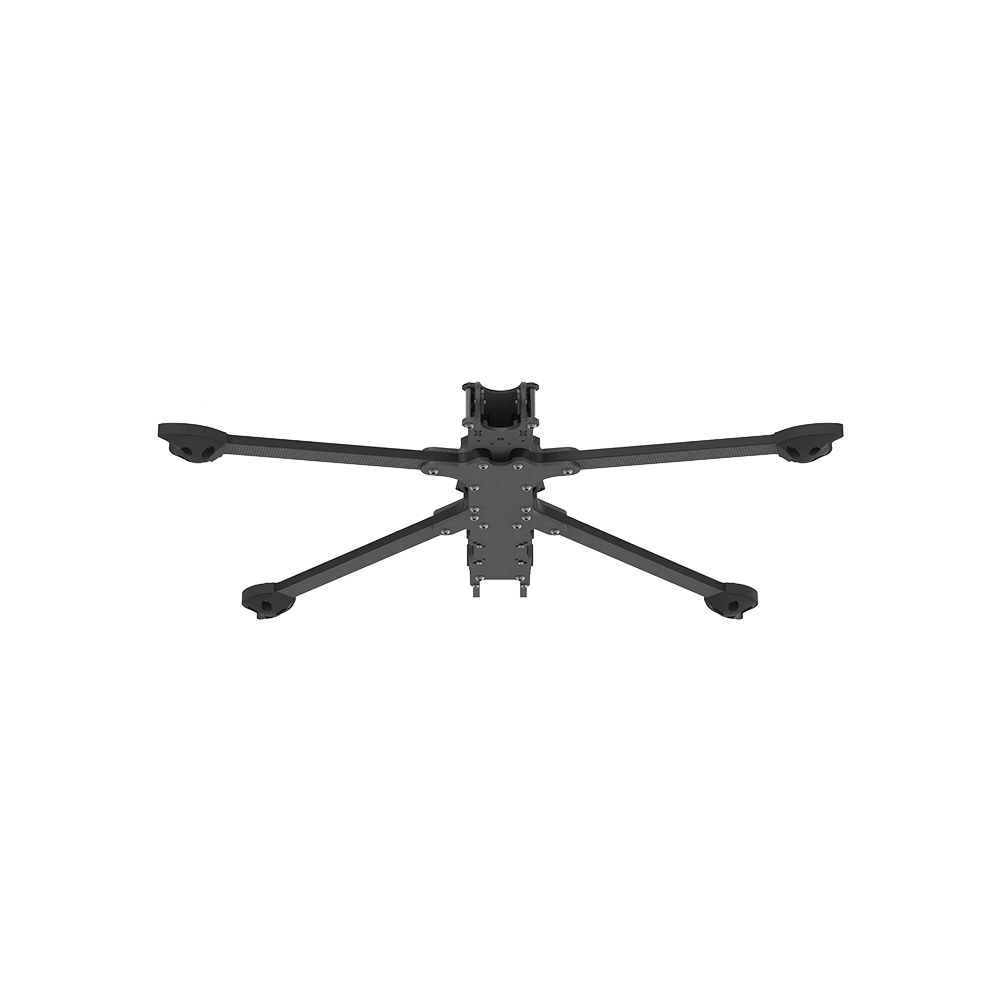

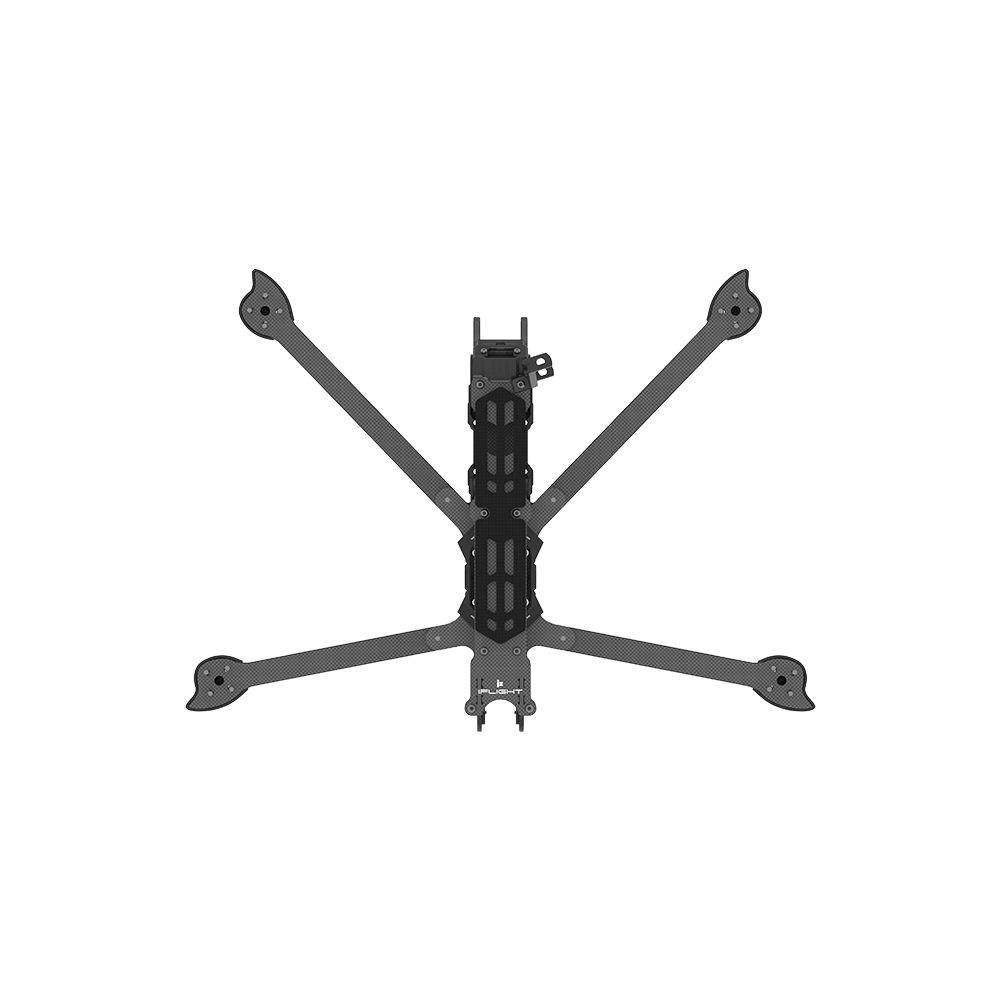

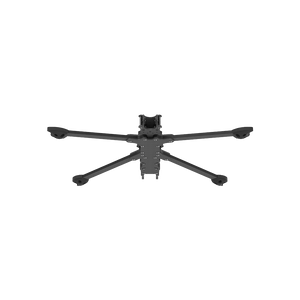

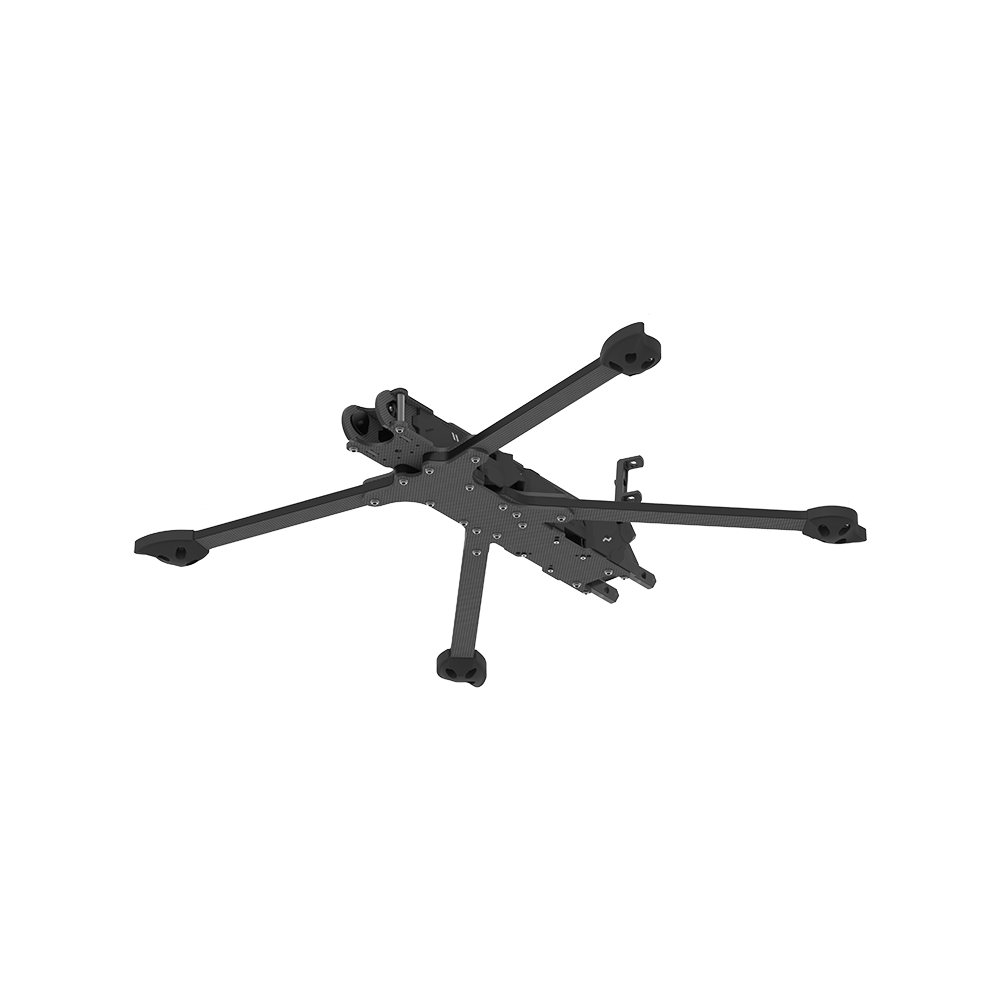

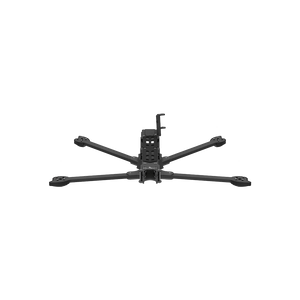

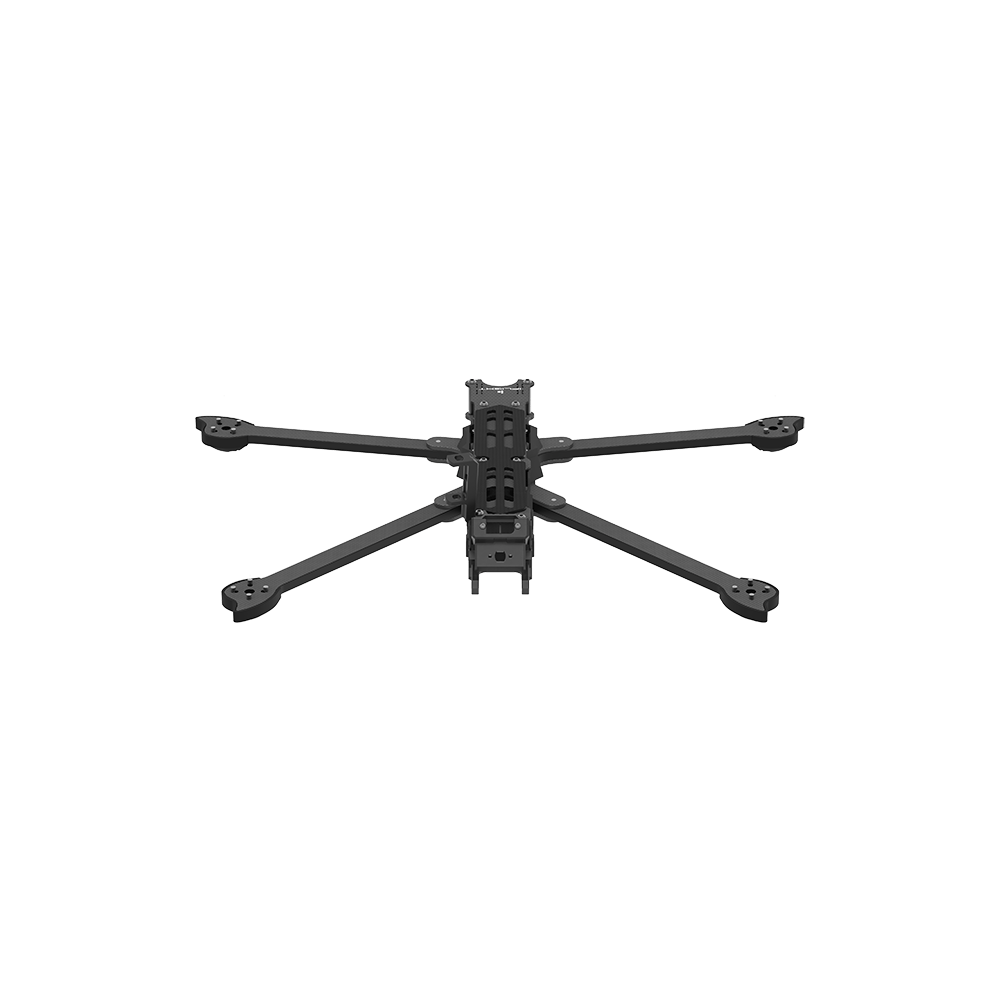

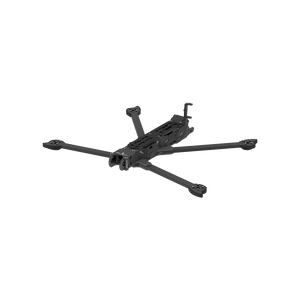

Product Name: Chimera9 ECO Frame Kit

Geometry: DeadCat(DC)

Wheelbase: 405mm

Frame Dimension: L360*W235*H34 mm

Frame Body Dimension: 34mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 21mm

Max VTX Height: 30mm

Flight Stack Mounting: 30.5*30.5mm φ3mm

VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Motor Mounting: 16x16mm / 19*19mm φ3mm

Weight: 377g

Compatibility: DJI O3 Air Unit, Caddx Vista, BLITZ Whoop 1.6W/2.5W VTX

1 x Chimera9 ECO Frame Kit

1 x Screw Bag

1 x TPU Set

1 x Anti-Slip Battery Pad

2 x Battery Strap

4 x AMASS MR30 Plugs

The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
