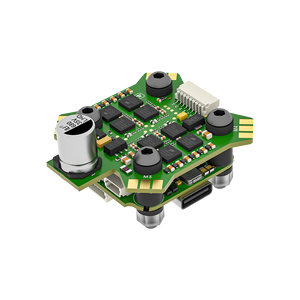

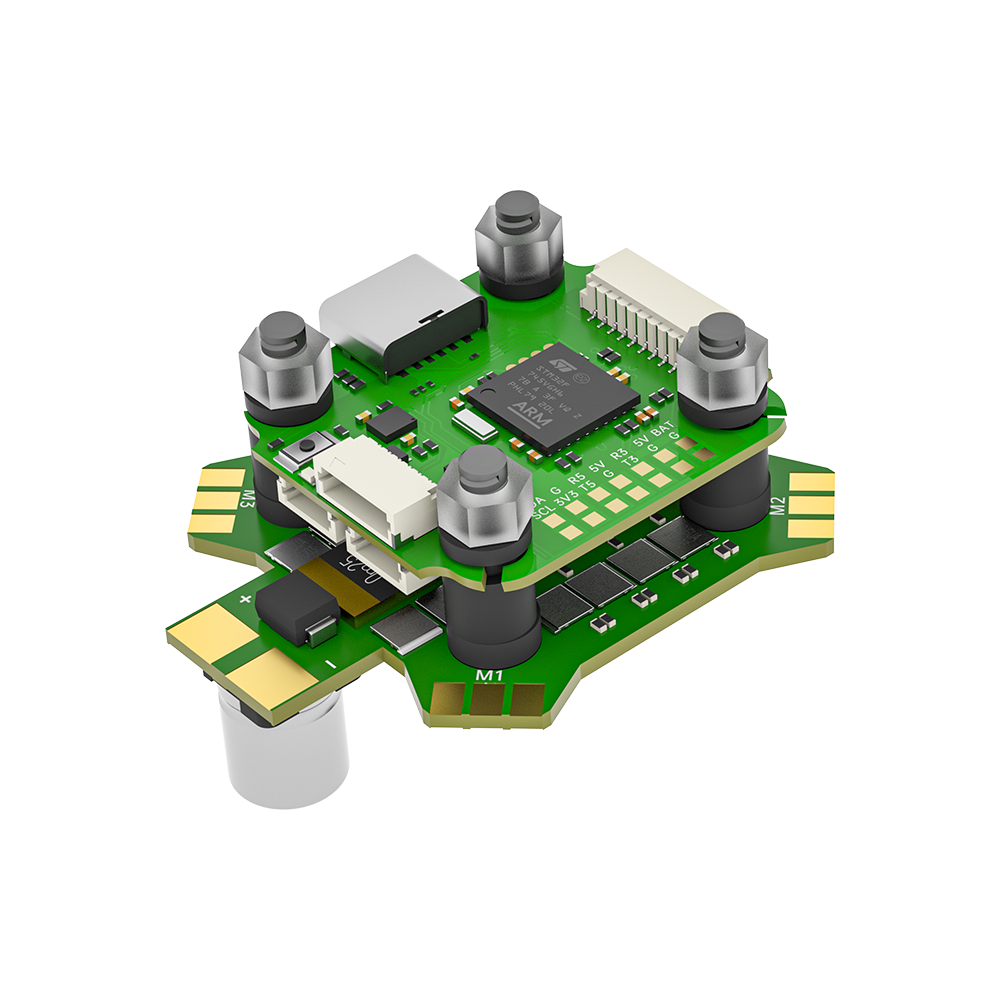

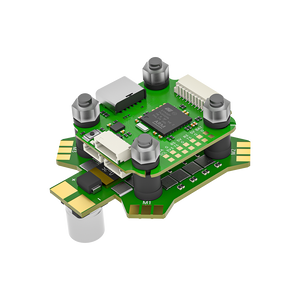

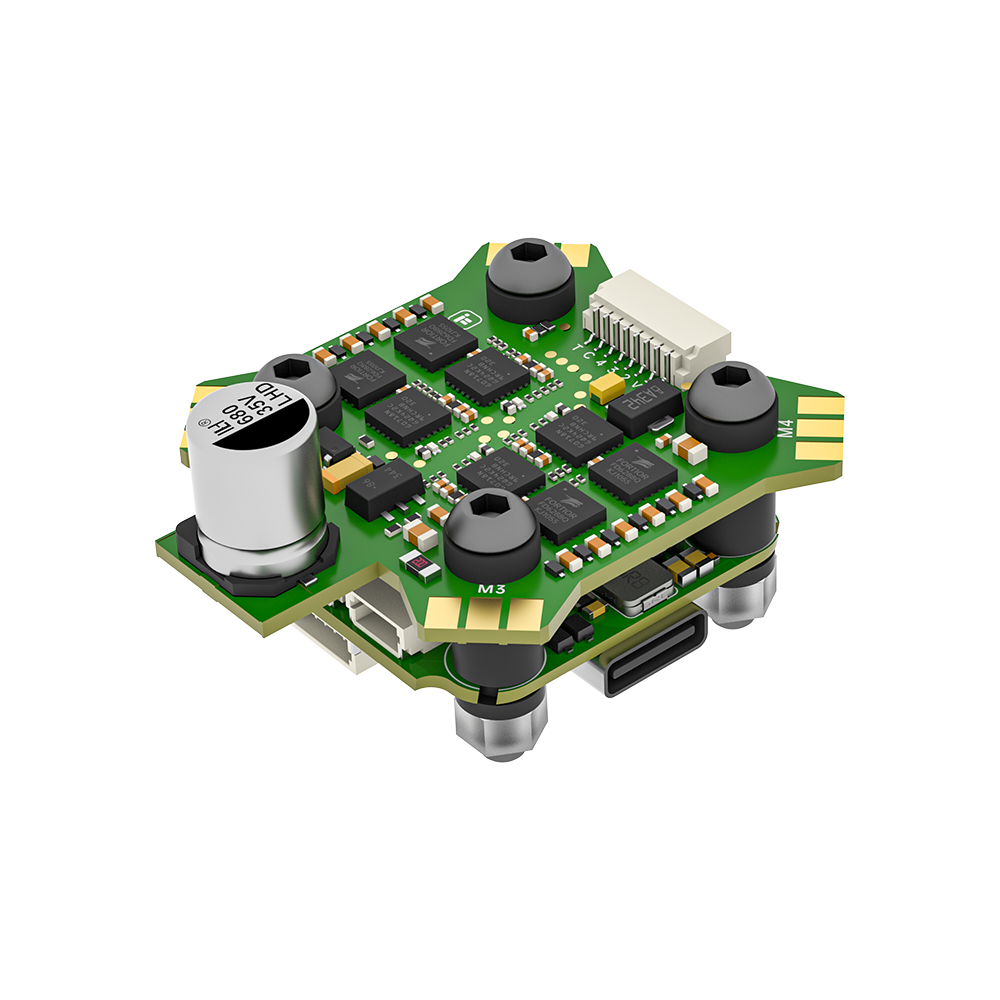

Our latest BLITZ Mini Stack used in our iFlight BNFs. Ultra fast F7 MCU, powerful 55A for 2-6S batteries. 20x20 mounting pattern. The perfect match for your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX Connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual debugging.

Features

Improved circuit design, better components, and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

Supports Betaflight and Ardupilot firmware

June 27, 2024: Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test".

MCU: STM32F745

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 6

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

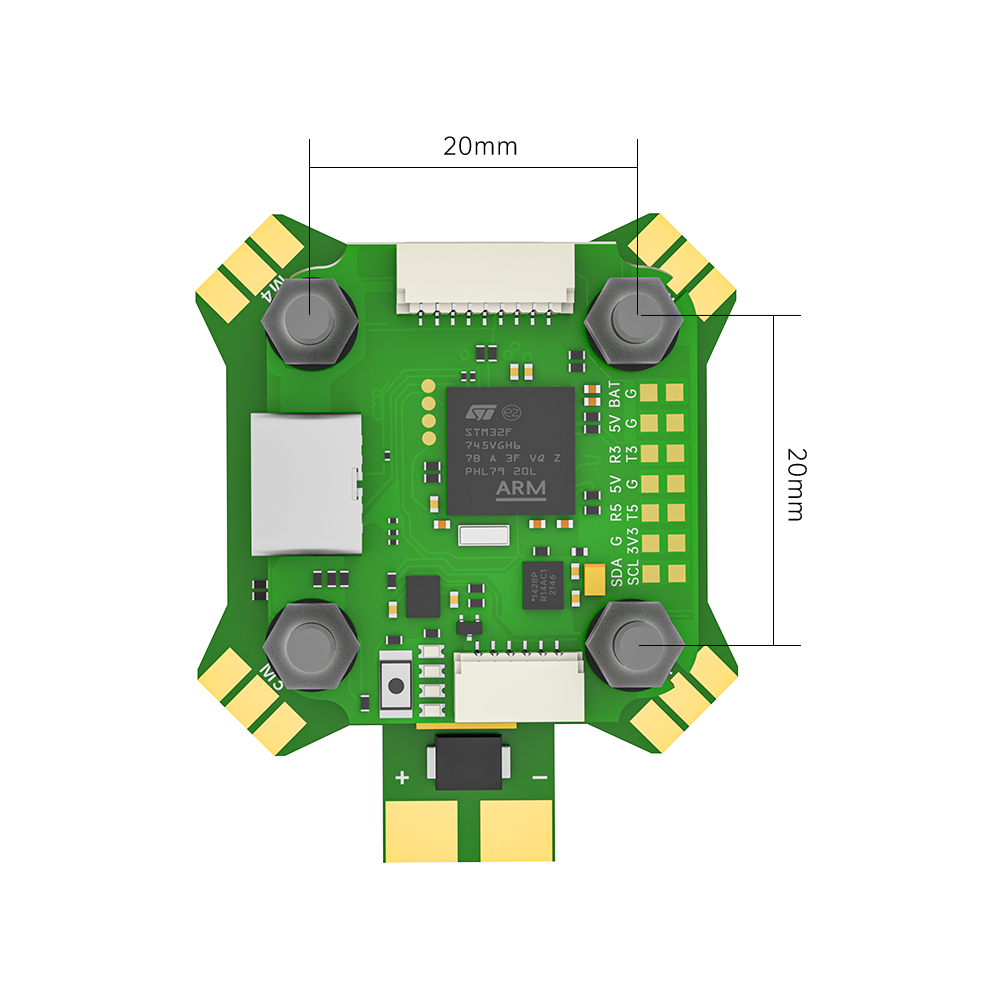

Mount pattern: 20*20mm/φ4

Dimensions: 30.5*27 mm

Weight: 4.8g

BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)

BF Firmware target: IFLIGHT_BLITZ_F7_AIO

Ardupilot Firmware: arduplane_with_bl

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

Mounting Holes: 20*20mm/Φ4mm

Weight: 11.3g

Supports 2-6S Lipo input

MCU: G071

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Firmware: BLHeli 32

Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9

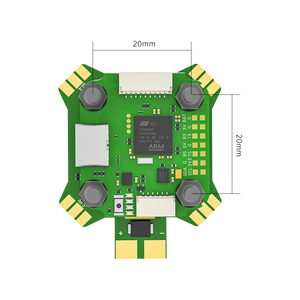

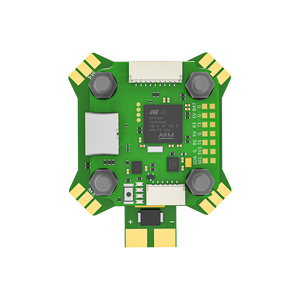

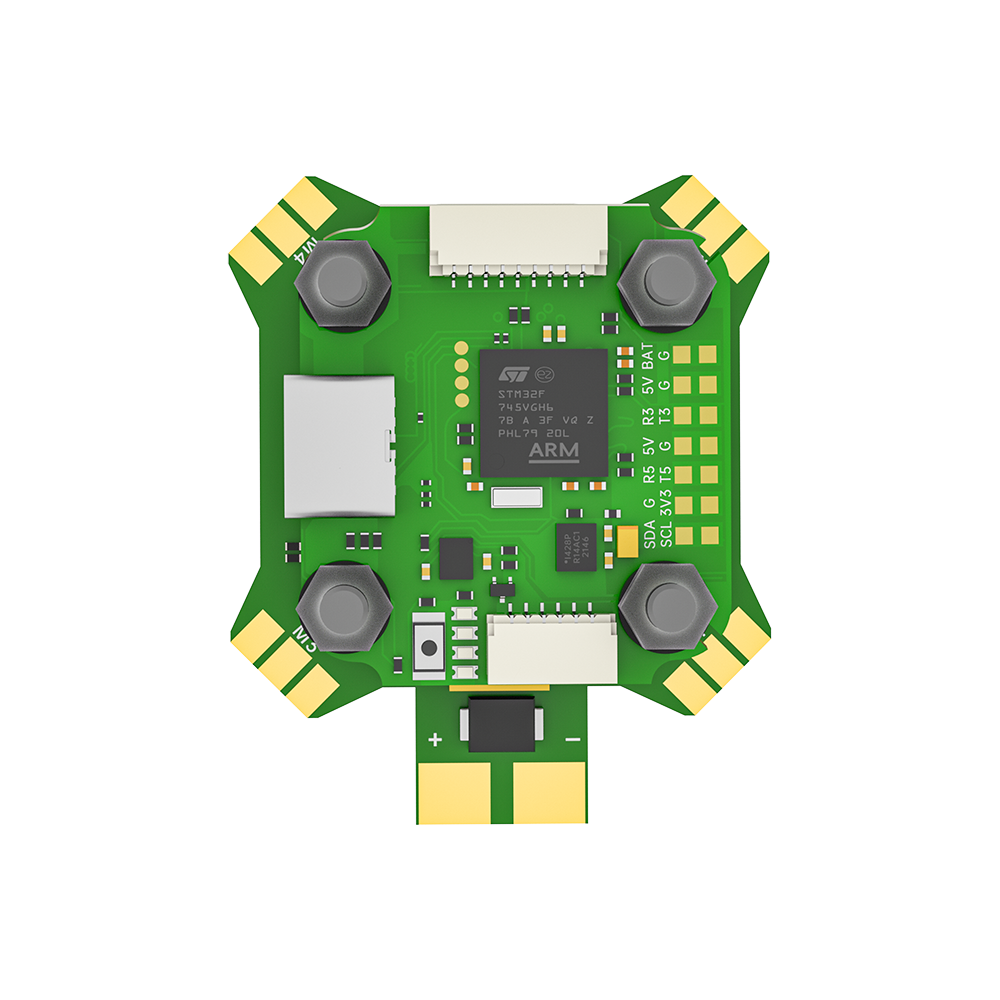

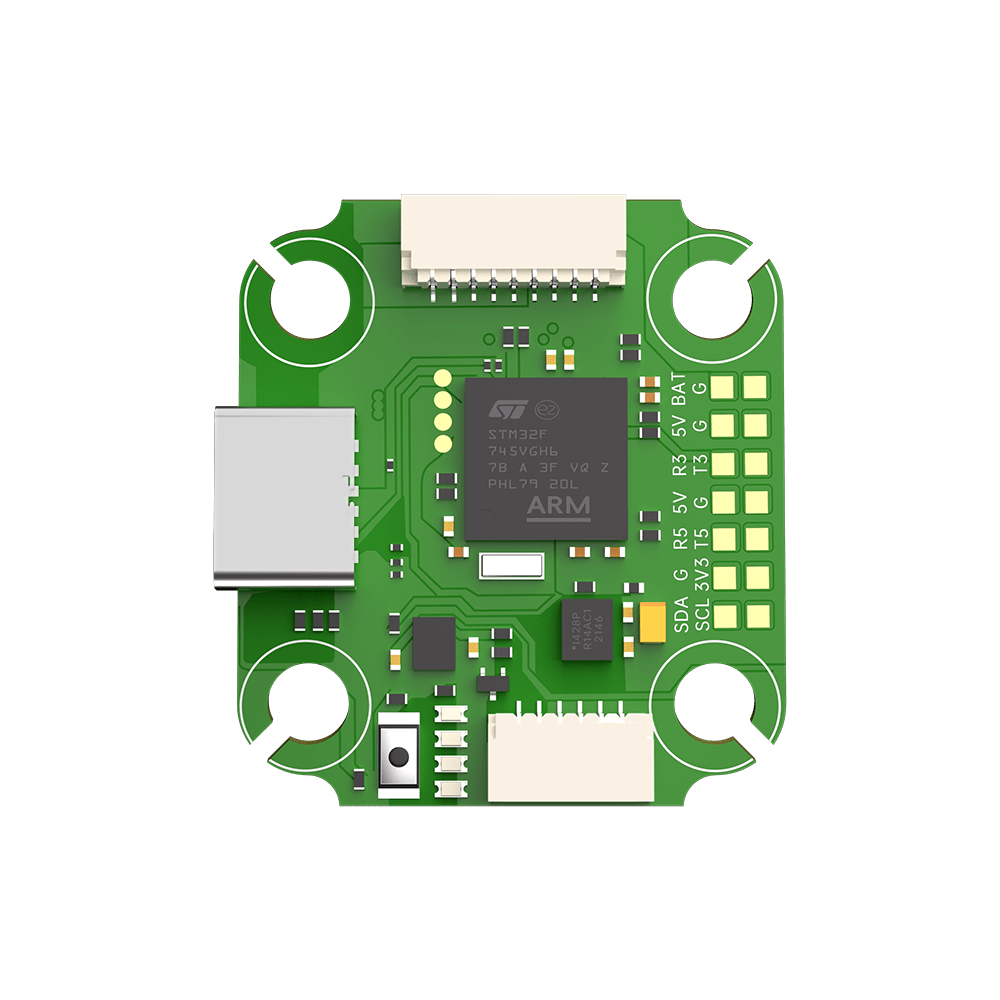

1 x BLITZ Mini F745 Flight Controller

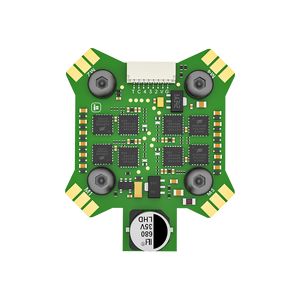

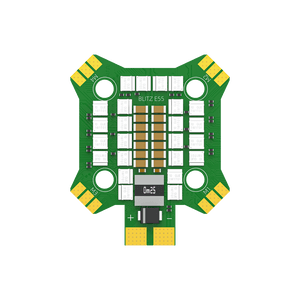

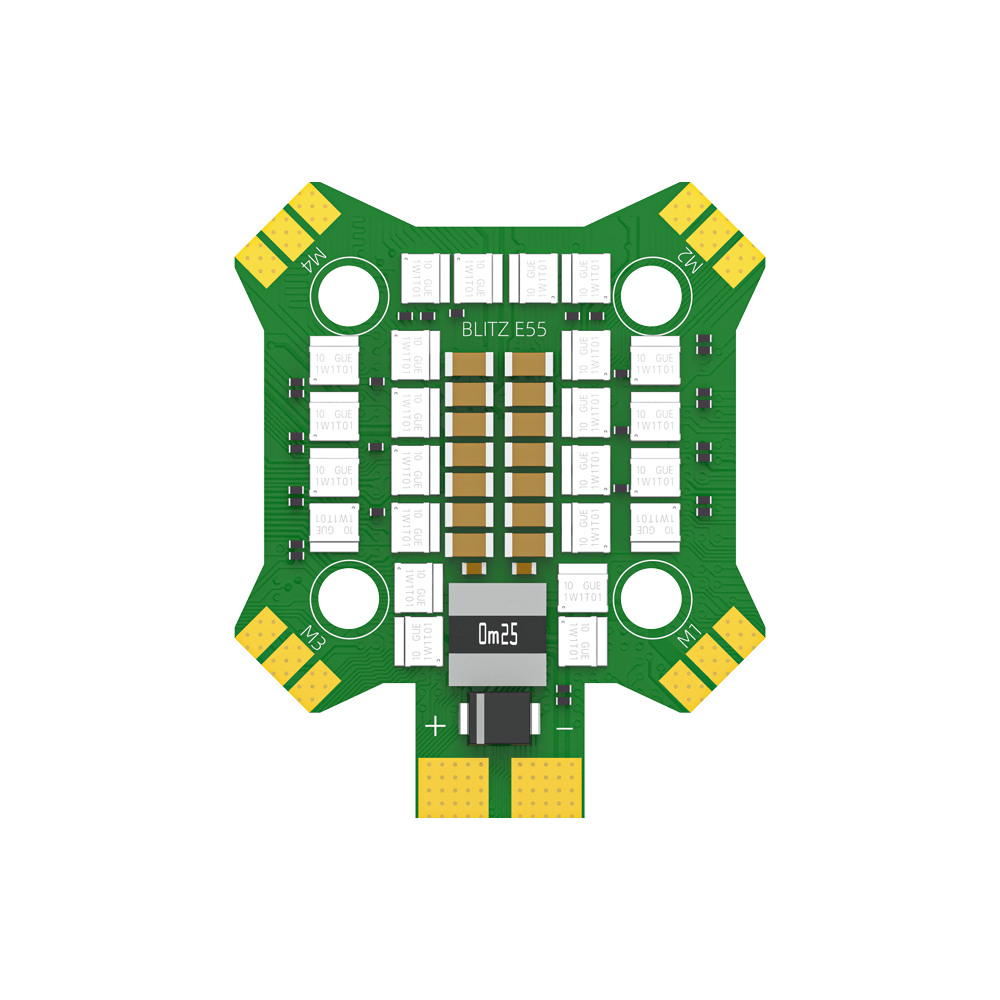

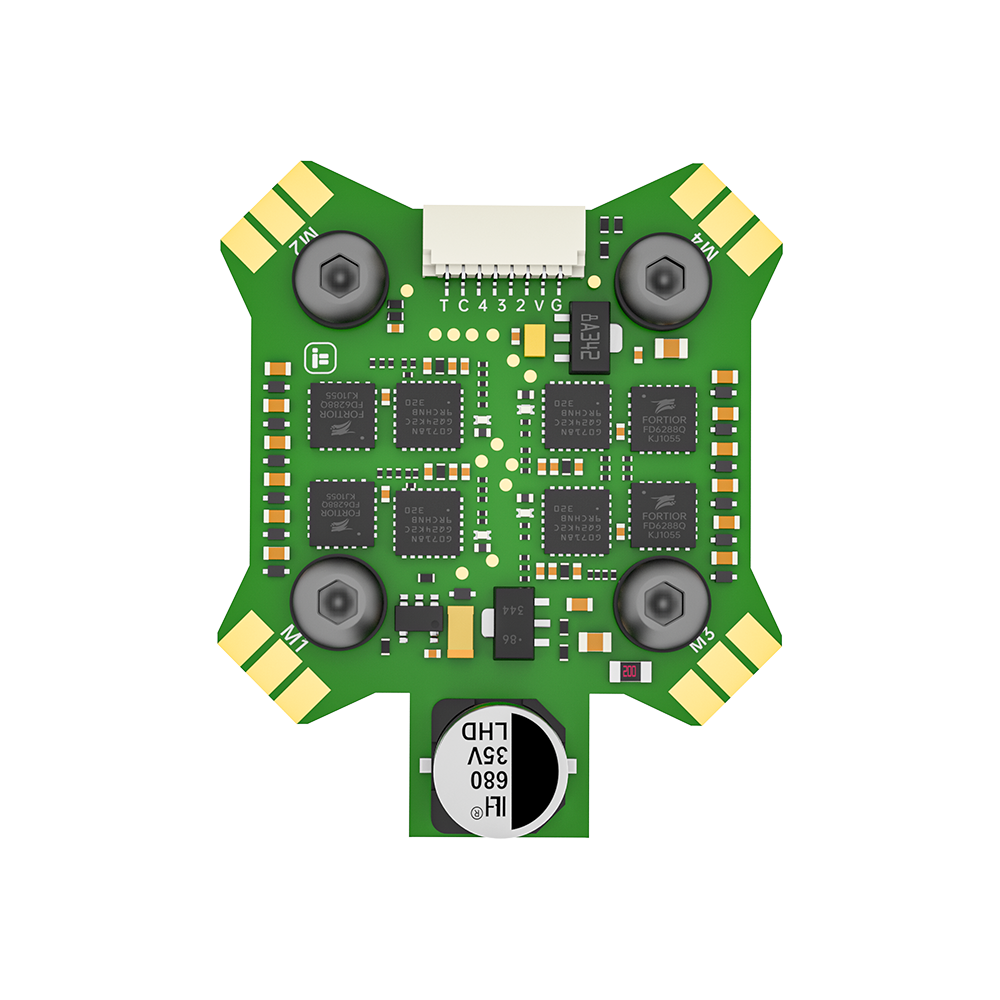

1 x BLITZ Mini E55 4-IN-1 2-6S ESC

1 x silicon grommets

1 x wire harness for F7 Flight controller
