For filmmakers who demand more power and stability, the AOS Cine35 V5 offers a robust solution, supporting up to 3.5" props.

Flexible battery mounting

With options for lengthwise or toilet tank battery mounting, the AOS Cine35 V5 makes it easy to balance your drone’s center of mass, regardless of your camera setup. Captive battery straps ensure quick and easy battery swaps, so you can spend more time in the air.

Immersive 155° FPV Experience

Enjoy an expansive 155-degree field of view (FOV) for your FPV camera, with no props in view—ideal for DJI O3 and O4 users. This feature enhances the immersive flight experience, allowing you to capture stunning, unobstructed footage.

Lightweight, Durable Prop Protection

The AOS Cine35 V5 features integrated carbon fiber prop guards that provide durable yet lightweight protection. Reinforced screw holes eliminate weak points in the structure, and airflow around the propeller is optimized to ensure maximum propulsive efficiency.

Durable and Versatile 7075 Aluminum Camera Cage

Protecting your camera, the 7075 aluminum camera cage accommodates all 19-20mm cameras, ensuring broad compatibility with various camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and supports the O4 camera, with full ND filter support. For other FPV systems, the frame offers hard mounting for popular camera options, including Analog, WS Avatar, HDZero, and DJI. Additionally, 14mm cameras are supported with a 3D-printed mount (STL file available under 3D Prints).

Front and rear GoPro mounting

The AOS Cine35 V5 supports both forward and reverse camera mounting so you can record the road ahead as well as capture the perfect chase shot with the same drone.

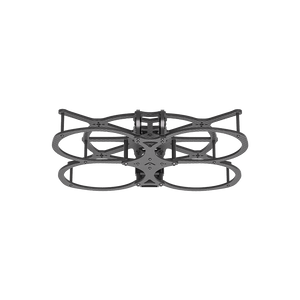

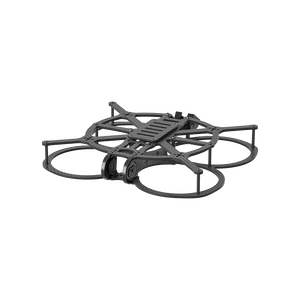

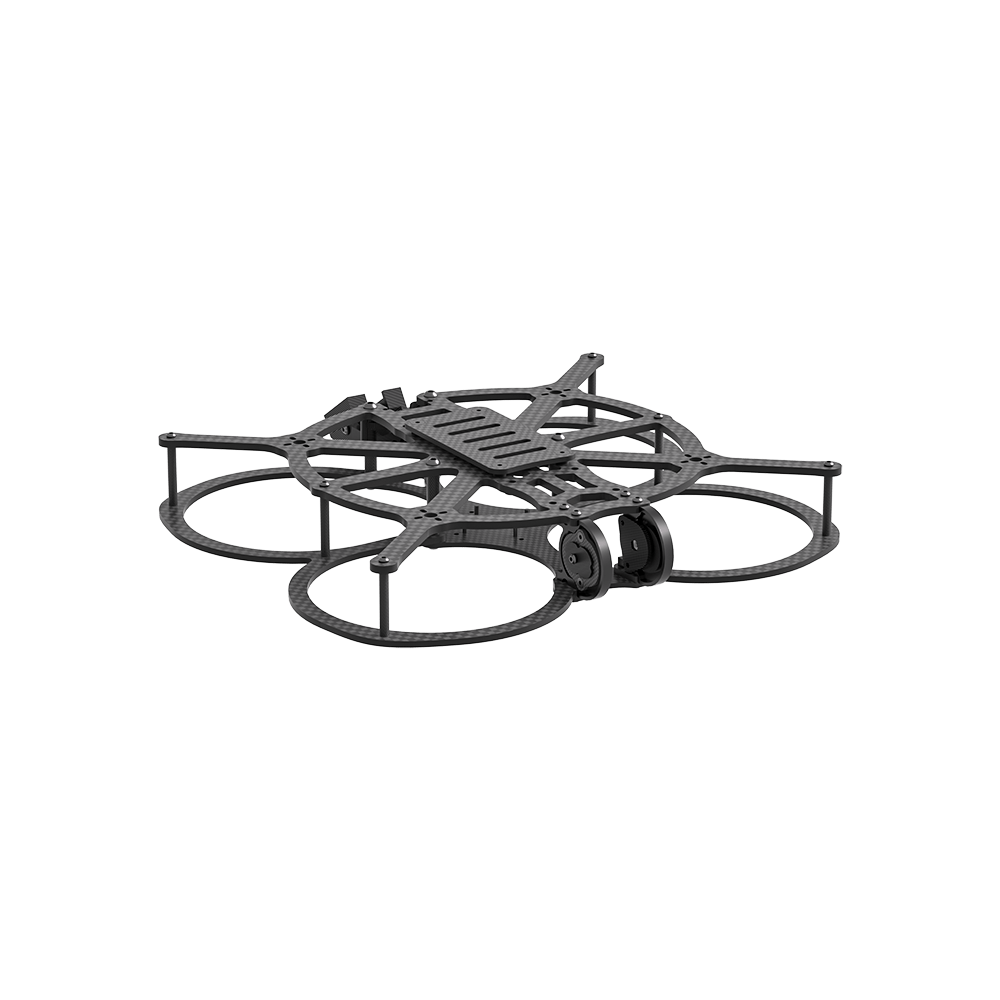

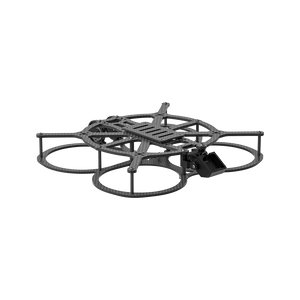

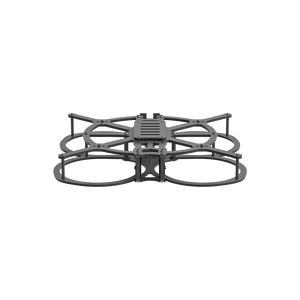

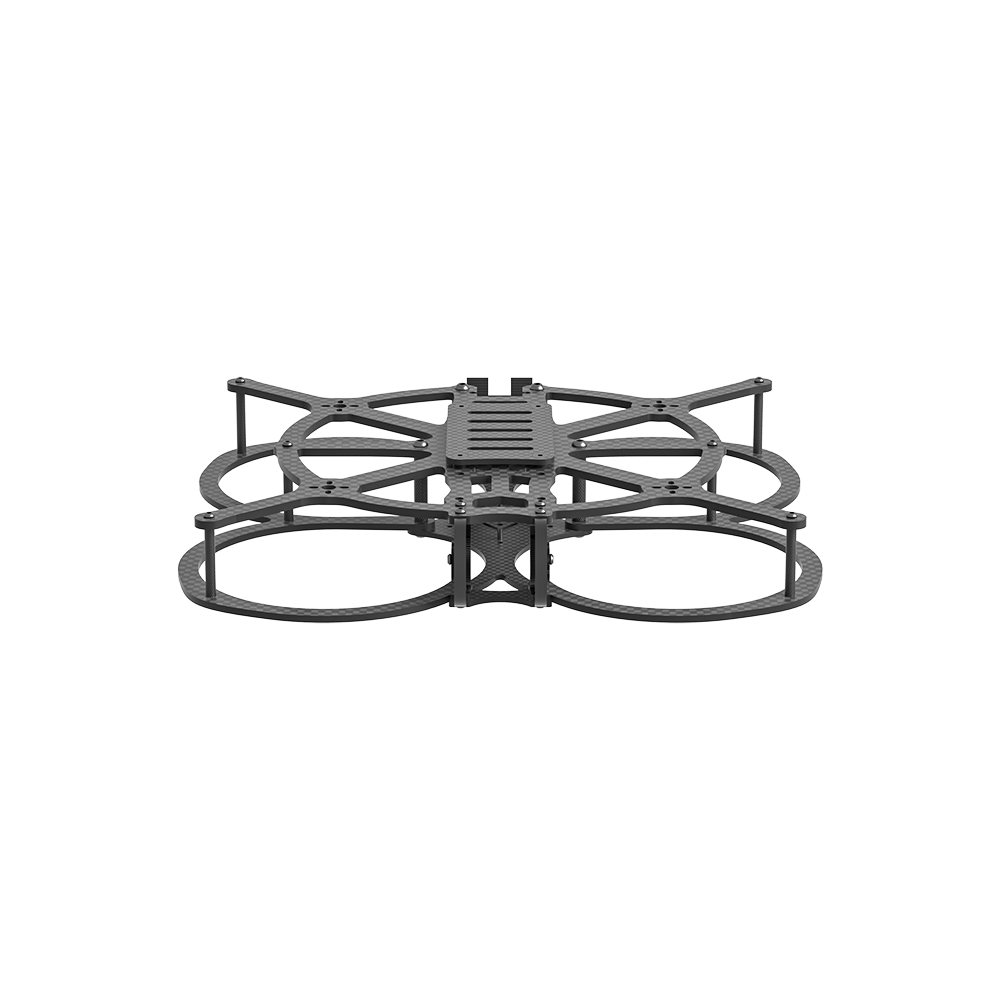

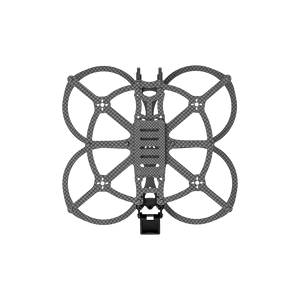

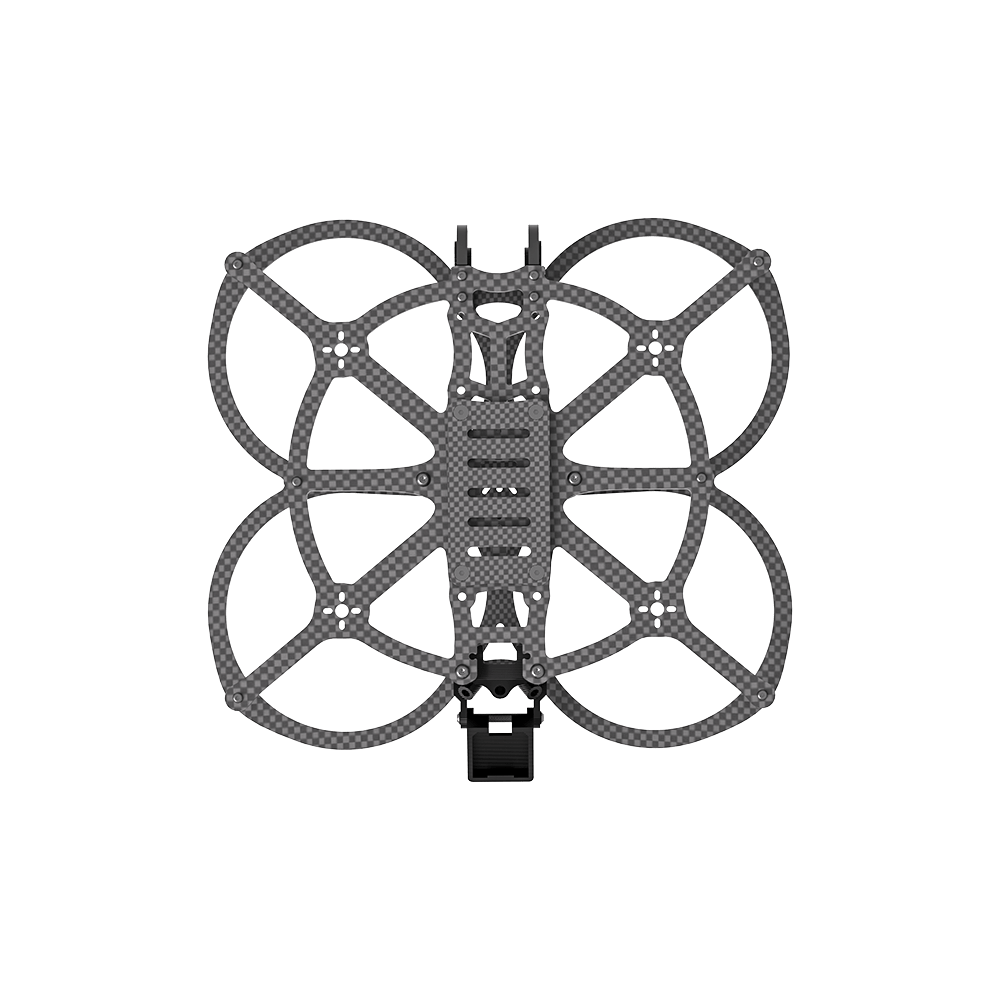

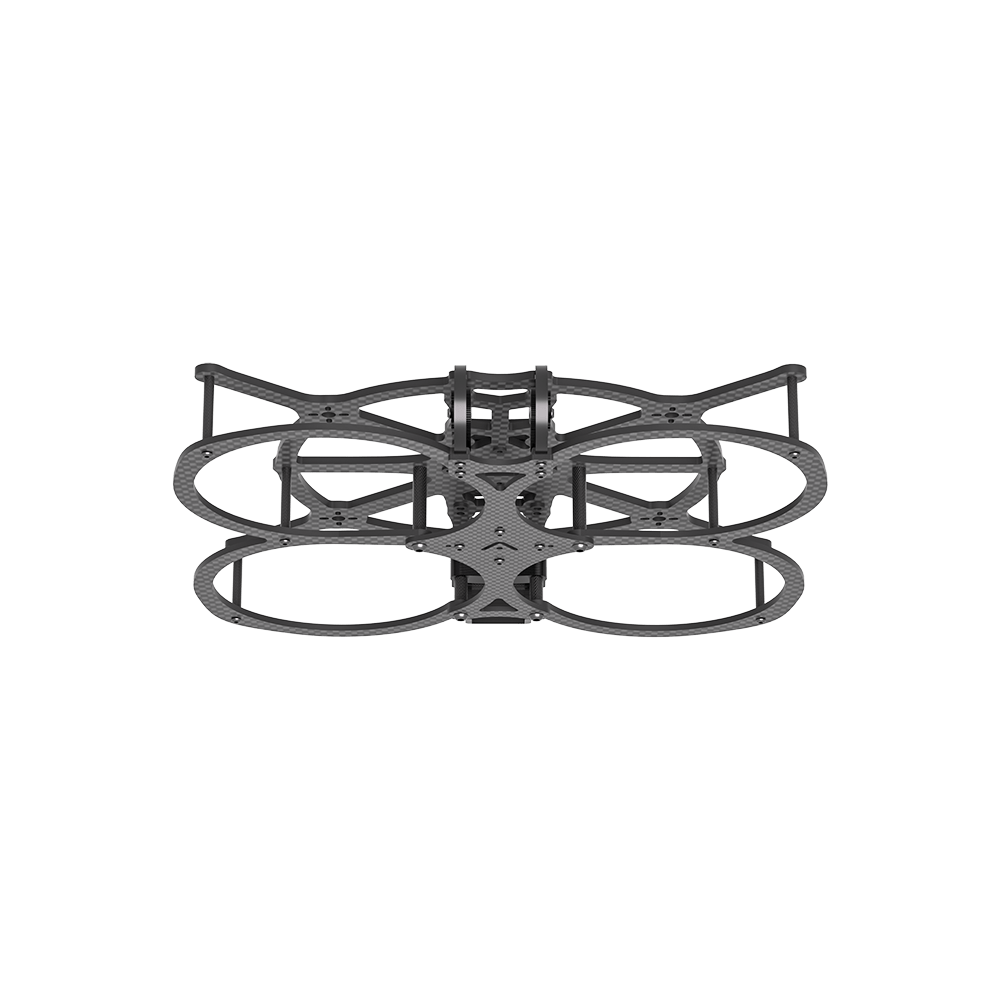

Product Name: AOS Cine35 V5 Frame Kit

Frame wheelbase: 153mm

Frame Dimension: L223*W203*H36.5mm

Top Plate Thickness: 3mm

Bottom Plate Thickness: 2mm

Battery Plate Thickness: 2mm

Max Flight Stack Height: 25mm

Max VTX Height: 25mm

Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm

VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm

Motor Mounting: 9x9mm/ 12*12 -φ2

Weight: 145g

Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX

1 x AOS Cine35 V5 Frame Kit

1 x TPU Parts

1 x Screw Bag

2 x Battery Strap

2 x Anti-slip Battery Pad

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
