The Nazgul Evoque F7 O4 6S HD ReadyFly Combo is a flexible premium FPV bundle for pilots who want a more complete 7.5-inch DJI O4 long-range setup.

Instead of buying only the drone, this ReadyFly Combo allows you to mix and match compatible components such as DJI O4-compatible FPV goggles, radio controller, high-capacity 6S batteries, charger, battery bag, propeller tool, spare propellers, and useful FPV accessories.

All recommended products in this ReadyFly Combo are individually added to your cart and can be removed or customized before checkout.

The drone is the required main product of this ReadyFly Combo. You can then choose the accessories you need depending on your existing equipment and intended flying style.

ReadyFly Combo Discount

When you select 7 or more products from this ReadyFly Combo, you receive 5% discount on all selected bundle products.

Example:

1 x Nazgul Evoque F7 O4 6S HD drone
6 x compatible batteries

This equals 7 selected products and qualifies for the ReadyFly Combo discount.

The discount applies only when the required bundle conditions are met in the cart. Your final package includes only the products you select.

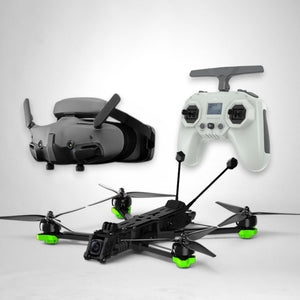

What This ReadyFly Combo Can Include

A complete ReadyFly setup should usually include:

FPV Drone
The Nazgul Evoque F7 O4 6S HD BNF drone is the required main product.

FPV Goggles
Choose compatible DJI O4 goggles, depending on your budget and feature preference.

Radio Controller
Choose a compatible controller that matches the selected receiver/control version of the drone.

Charger
Choose a suitable 6S-compatible charger, such as a dual charger or USB-C PD charger depending on your battery setup.

Batteries
Choose suitable 6S LiPo or Li-Ion batteries. On a 7.5-inch long-range drone, battery size has a very strong effect on flight time, weight, throttle response, braking distance, and overall handling.

Battery Bag
Recommended for safer battery storage and transport.

Propeller Tool
Recommended for tightening and removing propeller nuts.

Spare Propellers
Recommended because propellers are normal wear parts and can break during crashes, hard landings, or transport damage.

Important ReadyFly Note

This is a customizable ReadyFly Combo, not a fixed sealed factory kit.

Only the products you select are included in your order. Please check your cart carefully before checkout to make sure your setup includes all required parts.

About the Nazgul Evoque F7 O4 6S HD

The Nazgul Evoque F7 O4 6S HD is a premium 7.5-inch long-range FPV drone designed for cinematic cruising, mountain flying, high-capacity battery setups, and DJI O4 Air Unit Pro image quality.

It combines the Evoque series design language with a large DeadCat frame, XING2 2809 1250KV motors, Borg Mini F7 Flight Controller, Borg 60R ESC, DJI O4 Air Unit Pro, pre-installed GPS, dynamic LED effects, and long-range receiver options.

This drone is built for experienced pilots who want a powerful long-range platform with strong 6S performance, clean HD footage, improved protection, and a more advanced feature set than typical open-frame long-range builds.

It is not intended as a beginner freestyle quad.

Highlights

Custom Premium Long-Range ReadyFly Combo
Select the drone and compatible accessories such as DJI O4 goggles, radio controller, high-capacity batteries, charger, battery bag, propeller tool, and spare propellers according to your needs.

5% Bundle Discount
Select 7 or more eligible products from this ReadyFly Combo and receive 5% discount on all selected bundle products.

Premium 7.5-Inch Evoque Long-Range Platform
The Nazgul Evoque F7 is the long-range member of the Evoque series, designed for efficient cruising, cinematic flying, and high-capacity battery setups.

Its large 7.5-inch propeller platform allows it to carry bigger batteries than typical 5-inch freestyle drones, making it suitable for endurance-oriented flights, mountain cruising, and cinematic FPV routes.

DeadCat Geometry for Cleaner Footage
The DeadCat frame geometry helps reduce propellers in the camera view, making the Evoque F7 better suited for cinematic FPV footage and clean DJI O4 onboard recording.

This layout is designed for long-range cruising and smooth flight lines rather than compact racing or aggressive 5-inch freestyle flying.

Dual Official Tuning Presets
The Nazgul Evoque F7 includes two official tuning presets for different flying styles.

The Long-Range preset is intended for smooth and efficient cruising.
The Freestyle preset offers a more responsive feel when you want a more dynamic flying style.

The presets can be selected in the PID Tuning tab of Betaflight Configurator. Always make a backup before changing settings.

Dualband Dual-Antenna Receiver Option
The iFlight ELRS Dualband Diversity receiver option supports both 2.4GHz and 868/900MHz ELRS operation in one receiver system.

This option is designed for pilots who want a flexible long-range control link with dualband capability and dual-antenna reception.

Important: Your radio system, ELRS firmware, region settings, and configuration must match the receiver setup. Please check compatibility before ordering.

Upgraded Borg Stack
The upgraded Borg Stack combines the Borg Mini F7 Flight Controller with the Borg 60R ESC. It features an integrated Anti-Spark Filter, dual independent BEC power supply, VTX power switching, and a built-in polymer capacitor for improved electrical stability.

The 12V 2A BEC with VTX switch and 5V 25A BEC help provide stable power for the FPV system and onboard electronics.

Fin-Shaped Cooling Channel
The Evoque F7 uses a fin-shaped cooling channel to improve airflow and heat dissipation during long-range flights. Better cooling helps keep the electronics in a safer operating range during longer sessions, warm weather, and high-load operation.

Dynamic LED Effects
The Evoque F7 includes dynamic LED effects for better visibility and a recognizable Evoque appearance. LED effects can improve orientation and make the drone easier to identify visually, especially during setup, landing, and close-range operation.

DJI O4 Air Unit Pro – HD Recording and Digital FPV
The DJI O4 Air Unit Pro provides high-quality digital FPV video and onboard recording for cinematic long-range flying.

With its 1/1.3-inch image sensor, 155° ultra-wide field of view, D-Log M support, RockSteady 3.0+ stabilization, 1080p/100fps live view, and high-bitrate onboard recording, the O4 Air Unit Pro is well suited for detailed FPV footage in demanding environments.

Pre-Installed GPS
The Nazgul Evoque F7 is equipped with pre-installed GPS which can support coordinates, telemetry, flight logging, and Betaflight GPS Rescue after correct configuration and testing by the pilot.

Important: GPS Rescue is not enabled by default and must not be treated as a guaranteed return-to-home function. It must be configured, checked, and tested carefully before use.

BNF Drone Setup

The drone inside this ReadyFly Combo is a BNF drone, which means Bind-and-Fly.

It is assembled, factory configured, and tested before shipment. However, BNF does not mean Ready-to-Fly. The drone still needs to be bound to a compatible radio controller before the first flight.

Before the first flight, check all screws, motor direction, propeller orientation, failsafe behavior, GPS status, video link, OSD, Betaflight modes, receiver setup, and voltage warning settings.

ReadyFly Combo vs BNF Drone Only

Choose the ReadyFly Combo if you want to select multiple compatible products together, such as DJI O4 goggles, radio controller, batteries, charger, and accessories.

Choose the BNF drone only if you already have compatible DJI O4 FPV equipment, a matching radio system, suitable batteries, charger, and tools.

This ReadyFly Combo is especially useful because it helps reduce missing parts, wrong controller choices, wrong battery choices, charger compatibility issues, and missing long-range accessories.

Product Images and Variant Notice

Product images are for display and reference only.

Some images may be generic manufacturer photos and may not show the exact antenna layout, receiver antenna length, battery mounting, GPS position, props, LED appearance, or small details of every available variant.

The final configuration depends on the selected receiver version, production batch, and product variant.

Choose the Correct Receiver / Control Version

Please choose the drone version that matches your radio controller.

Available receiver/control versions:

For DJI FPV Controller 2 & 3
TBS Crossfire Diversity NANO RX
iFlight ELRS 2.4GHz / 868 / 900MHz Dualband Diversity RX

The DJI O4 Air Unit Pro is responsible for video transmission. The selected receiver/control version determines how the drone receives control commands from your radio controller.

DJI Controller Version
Choose the DJI Controller version if you want to control the drone with DJI FPV Remote Controller 2 or DJI FPV Remote Controller 3.

This version is configured for DJI SBUS control. The DJI Controller version does not have additional receiver antennas because the control signal is transmitted through the DJI O4 Air Unit Pro system and its O4 antennas.

Important: The DJI Controller version is intended for DJI remote control use. If you want to use ELRS or TBS Crossfire later, a separate receiver must be installed and configured correctly. This may require wiring changes, disconnecting DJI SBUS, or using another UART.

TBS Crossfire Diversity NANO RX Version
Choose this version if you use a TBS Crossfire radio system or a compatible Crossfire module.

This version uses a Crossfire Diversity receiver with two receiver antennas.

iFlight ELRS Dualband Diversity RX Version
Choose this version if you use a compatible ELRS radio system and want one receiver that supports both 2.4GHz and 868/900MHz operation.

This is a dualband diversity receiver. It is compatible with both ELRS frequency ranges when configured correctly and uses two receiver antennas.

Important: Your radio, ELRS firmware, region settings, and configuration must match the receiver setup. Please check compatibility before ordering.

Receiver Antenna Note

Both the TBS Crossfire Diversity and iFlight ELRS Dualband Diversity receiver versions use two receiver antennas.

The DJI Controller version does not have separate receiver antennas because control is handled through the DJI O4 Air Unit Pro antennas.

Product images are for display and reference only. Some images may be generic manufacturer photos and may not show the exact antenna layout or receiver antenna length of every available variant.

FPV Goggles Compatibility

The DJI O4 Air Unit Pro is compatible with:

DJI Goggles 3
DJI Goggles N3
DJI Goggles 2
DJI Goggles Integra

DJI FPV Remote Controller 3 is compatible when using the DJI Controller version.

DJI FPV Remote Controller 2 is compatible when using the DJI Controller version.

Other radio controllers can be used only if they match the installed receiver version, for example ELRS or Crossfire.

Important: Goggles handle the video link. The radio controller or receiver handles control input. These are separate systems and must both be compatible.

GPS

GPS is pre-installed on this product.

GPS can support coordinates, telemetry, flight logging, and Betaflight GPS Rescue after correct configuration and testing by the pilot.

Important: GPS Rescue is not enabled by default and must not be treated as a guaranteed return-to-home function. It must be configured, checked, and tested carefully before use.

Battery Recommendations

This drone is designed for 6S batteries and long-range battery setups.

Standard LiPo Recommendation

6S 3300–3500mAh LiPo

This is the recommended starting range for a balanced mix of throttle response, manageable weight, stable handling, and practical flight time.

Larger LiPo Options

6S 4000–8000mAh LiPo can be used depending on the desired flight time and use case.

Larger LiPo batteries increase takeoff weight and reduce agility.

Li-Ion / Endurance Cruising

6S1P 5000mAh Li-Ion is the bare minimum Li-Ion option for this platform. It can be used for very smooth cruising only and can only be mounted with the rear battery strap due to its shorter pack size.

For 7-inch and 7.5-inch long-range platforms, we recommend 6S2P Li-Ion batteries for better throttle response and reduced voltage sag.

Recommended Li-Ion Options

6S2P 8000mAh Li-Ion for long-range endurance cruising

6S2P 10000mAh Li-Ion for maximum range and maximum endurance setups

Important Li-Ion Note

Compared with 5-inch platforms, 7-inch and 7.5-inch drones draw more power and place higher load on the battery during climbs, wind correction, heavier payloads, and long-distance flights.

A 6S1P Li-Ion pack can experience more voltage sag and weaker throttle response on this size of drone. For this reason, 6S2P Li-Ion packs are strongly recommended when using Li-Ion on the Nazgul Evoque F7.

Li-Ion batteries are suitable for smooth cruising and endurance-oriented flying.

They are not suitable for aggressive freestyle, racing, repeated hard punch-outs, or high-current flying.

Li-Ion batteries behave differently from LiPo batteries and may require adjusted Betaflight voltage warnings.

Always configure warning and landing voltages according to the battery chemistry and pack used.

Important Long-Range Battery Note

Large batteries can strongly change the handling of the drone.

A heavier battery may increase cruising time but reduce agility, increase braking distance, increase motor load, and require more careful flight planning.

Always keep sufficient battery reserve for return flight, wind, altitude changes, and unexpected route changes.

Charger Recommendations

Choose a charger that supports 6S LiPo and Li-Ion batteries with balance charging.

For one or two batteries, a dual-channel charger can be practical.

For compact travel setups, a USB-C PD charger may be suitable, depending on charging power and battery size.

Always use the correct battery type, cell count, charge current, and balance mode when charging.

Action Camera Support

The Nazgul Evoque F7 can carry a GoPro or similar action camera when a compatible mount is used.

Adding an action camera increases takeoff weight, changes flight behavior, increases current draw, and usually reduces flight time.

For many long-range flights, the DJI O4 Air Unit Pro onboard recording may already be sufficient, reducing the need for an additional action camera.

Technical Specifications

Product Name: Nazgul Evoque F7 O4 6S HD BNF

Product Type: 7.5-inch DJI O4 long-range FPV drone

Recommended Skill Level: Experienced FPV pilots

Video System: DJI O4 Air Unit Pro

Receiver Options: DJI FPV Controller 2 & 3, TBS Crossfire Diversity NANO RX, iFlight ELRS 2.4GHz / 868 / 900MHz Dualband Diversity RX, depending on selected variant

GPS Option: GPS pre-installed

Geometry: DeadCat

Frame Diagonal Motor Distance: 321mm

Flight Controller: Borg Mini F7 Flight Controller

ESC: Borg 60R ESC

Stack Features: Integrated Anti-Spark Filter, dual independent BEC power supply, VTX switch, built-in polymer capacitor

BEC: 12V 2A with VTX switch + 5V 25A

Motor: XING2 2809 1250KV

Propellers: HQ 7.5×3×3 Propellers

Battery Input: 6S

Battery Plug: XT60

Recommended Battery Type: 6S LiPo or 6S Li-Ion, depending on use case

Recommended LiPo Battery: 6S 5600mAh

Recommended Li-Ion Battery: 6S2P 8000mAh / 10000mAh for long-range endurance cruising

Weight: approx. 765g ±5g without battery, manufacturer-stated

Approx. Takeoff Weight: approx. 1620g ±5g with 21700 6S 10000mAh battery, manufacturer-stated

Dimensions: approx. 284 × 283 × 53mm

Maximum Speed: approx. 140km/h, manufacturer-stated

Maximum Takeoff Altitude: approx. 7000m, manufacturer-stated

Maximum Hover Time: approx. 25 minutes without payload with 6S 10000mAh battery, manufacturer-stated hover value

Recommended Load: 800g, manufacturer-stated

Operating Temperature Range: -20°C to 40°C

Antennas: Dual DJI O4 antennas plus receiver antennas depending on selected receiver version

GPS: Pre-installed

GPS Module: BLITZ Mini M10 GPS V2, manufacturer-stated

GNSS Support: GPS + SBAS + Galileo + QZSS + GLONASS

Compass / Magnetometer Note: The GPS module may include compass hardware, but the magnetometer is not connected by default on the BNF configuration. Additional wiring and configuration would be required by the customer.

Important Note About Flight Time

The manufacturer-stated hover time is measured under controlled hover conditions and should not be understood as normal long-range flight time in all conditions.

Actual flight time depends on battery type, battery condition, throttle use, wind, altitude, temperature, payload, propellers, flight route, return reserve, and pilot style.

DJI O4 Air Unit Pro Specifications

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens Field of View: 155°

ISO Range: 100–25600

Live View Resolution: 1080p/100fps H.265

Onboard Recording: 4K recording supported by DJI O4 Air Unit Pro

Video Format: MP4

Maximum Video Bitrate: 130Mbps

Color Mode: Normal / D-Log M

Stabilization: RockSteady 3.0+ / stabilization off for Gyroflow use

Live View Quality: 1080p at 100fps

Operating Frequency: 5.170–5.250GHz and 5.725–5.850GHz, region dependent

Transmitter Power: Region dependent

Communication Bandwidth: max. 60MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported microSD Cards: up to 512GB

Operating Temperature: -10°C to 40°C

Air Unit Weight Including Camera Module: approx. 32g

Transmission Module Dimensions: 33.5 × 33.5 × 13mm

Video Transmission Range

The maximum video transmission range depends on goggles, region, environment, antenna orientation, interference, terrain, and local regulations.

Reference values with DJI Goggles 3 / DJI Goggles N3:

FCC: up to 15km

CE: up to 8km

SRRC: up to 8km

In Europe, CE limits apply.

Do not treat the maximum transmission range as a guaranteed flight distance.

Compatibility Notes

This is a DJI O4 drone. It is not the same as an analog, DJI O3, Walksnail, or HDZero drone.

The DJI O4 Air Unit Pro handles the video link. The receiver or DJI control configuration handles radio control.

Different receiver versions are wired and configured differently. Choose the version that matches your radio controller.

Your final ReadyFly Combo must include compatible goggles, compatible radio controller, suitable battery, and suitable charger to be a usable flight setup.

Packing List – Drone

1 x Nazgul Evoque F7 O4 6S HD BNF

2 x Antennas

1 x Anti-Slip Battery Pad

2 x 7.5-Inch Propeller Pairs

2 x Battery Straps

ReadyFly Combo Packing Note

Additional products such as goggles, radio controller, batteries, charger, battery bag, propeller tool, spare propellers, and accessories are included only if selected in the ReadyFly Combo before checkout.

Setup Notes

The drone is delivered with a factory-installed Betaflight preset.

Before the first flight, no firmware update, no reset, and no Betaflight changes are required.

BNF means the drone still needs to be bound to your compatible radio controller before flight.

Check all screws, motor direction, propeller orientation, receiver binding, failsafe behavior, OSD, GPS status, video link, LED function, and voltage warning settings before the first flight.

GPS Rescue is not enabled by default. It must be configured, checked, and tested by the pilot before use.

For long-range flying, always verify GPS satellite lock, home point behavior, receiver range, video link quality, battery reserve, wind direction, return route, and local flight restrictions before takeoff.

We strongly recommend not flashing firmware, not resetting Betaflight, and not applying random presets unless you have saved a backup and know exactly which target and configuration are required.

Important Notice – VTX / DJI O4 Air Unit Not Powering On

After flashing new firmware, resetting Betaflight, or applying the wrong preset, the VTX_ON_OFF mode may be disabled or removed.

If this mode is not active, the DJI O4 Air Unit Pro may not receive power and will remain off.

Please make sure that VTX_ON_OFF is enabled in the Betaflight Modes tab.

If the mode is missing, restore the factory configuration using the correct recovery preset.

Reflashing firmware is usually not required.

Important Note – GPS Rescue and Long-Range Flying

GPS Rescue is a Betaflight safety feature that may help the drone return toward the home point after correct configuration.

It is not a certified return-to-home system and must not be treated as a guarantee that the drone will return safely.

Incorrect GPS Rescue settings, insufficient satellites, wrong failsafe setup, low battery, strong wind, compass-free navigation limits, pilot error, terrain, or RF signal loss can still lead to crashes or loss of the drone.

Always test GPS Rescue carefully in a safe area before relying on it, and always keep enough battery reserve for the return flight.

FAQ

What is a ReadyFly Combo?
A ReadyFly Combo is a customizable FPV bundle. You can select the drone and compatible accessories such as goggles, controller, batteries, charger, propeller tool, battery bag, and spare propellers.

Is this a fixed complete set?
No. This is a mix-and-match ReadyFly Combo. Only the products you select are included in your order.

How do I get the 5% ReadyFly Combo discount?
Select 7 or more eligible products from this ReadyFly Combo. The drone counts as one product and is required. For example, one drone plus six batteries equals seven products.

Does the ReadyFly Combo include everything automatically?
No. The products are individually added to your cart and can be removed or customized. Please check your cart before checkout.

What does BNF mean?
BNF means Bind-and-Fly. The drone is assembled and factory configured, but it still needs to be bound to your compatible radio controller before flight.

Which receiver version should I choose?
Choose the version that matches your radio controller.

Use DJI Controller version for DJI FPV Remote Controller 2 or 3.
Use iFlight ELRS Dualband Diversity RX if you use compatible ELRS hardware and want one receiver that supports both 2.4GHz and 868/900MHz operation.
Use TBS Crossfire Diversity NANO RX if you fly with Crossfire and want the Crossfire Diversity receiver version.

Why does my receiver antenna layout look different from the product photos?
Product photos are for display only and may not show every receiver version.

DJI Controller versions do not have separate receiver antennas because control is handled through the DJI O4 Air Unit Pro antennas.

Both TBS Crossfire Diversity and iFlight ELRS Dualband Diversity receiver versions use two receiver antennas.

Are DJI O4 goggles the same as the controller?
No. Goggles are used for the video link. The radio controller or receiver version is used for control input. Both must be compatible.

Is GPS included?
Yes. The Nazgul Evoque F7 O4 6S HD includes pre-installed GPS.

Does the GPS include a compass?
The included GPS module may include compass hardware, but the magnetometer is not connected by default on the BNF configuration. Additional wiring and configuration would be required by the customer.

Is GPS Rescue enabled by default?
No. GPS Rescue is not enabled by default. It must be configured, checked, and tested by the pilot before use.

Which battery should I use?
For standard LiPo use, we recommend 6S 3300–3500mAh LiPo as the balanced starting point.

For maximum long-range cruising, we recommend 6S2P Li-Ion batteries such as 8000mAh or 10000mAh.

Can I use LiPo batteries?
Yes. LiPo batteries are recommended when you want better throttle response and more dynamic flying.

Can I use Li-Ion batteries?
Yes. Li-Ion batteries are suitable for smooth long-range cruising and endurance-oriented flying.

For this large 7.5-inch platform, 6S2P Li-Ion packs are recommended to reduce voltage sag and improve throttle response compared with smaller Li-Ion packs.

Can I use a GoPro or action camera?
Yes. The frame can carry a GoPro or similar action camera with a compatible mount. Additional payload increases weight and usually reduces flight time.

Is this drone suitable for beginners?
No. This is a large 7.5-inch long-range FPV drone and is recommended for experienced pilots who understand GPS, failsafe setup, battery management, radio range, and local flight rules.

Can I fly in rain or wet conditions?
No. Do not fly in rain, snow, wet grass, fog, or high moisture conditions. Water or moisture damage is not considered a normal manufacturing defect.

Safety Notice

FPV drones are high-performance aircraft and must be operated responsibly.

Always follow local laws and regulations.

Remove the propellers before configuration, receiver testing, firmware work, or motor testing on the bench.

Always inspect the drone before every flight.

Do not fly with damaged propellers, loose screws, damaged antennas, damaged batteries, wet connectors, or visible electronic damage.

For long-range flights, always plan the route, check weather and wind, verify GPS lock, keep sufficient battery reserve, and respect local airspace rules.

Crash damage, water damage, corrosion, incorrect firmware flashing, wrong Betaflight configuration, incorrect wiring, incorrect receiver setup, incorrect battery use, unsafe operation, or loss due to poor long-range planning are not considered normal manufacturing defects.

LiPo and Li-Ion batteries can be dangerous if charged, stored, transported, or used incorrectly. Always use a suitable charger, select the correct battery type and cell count, and follow battery safety rules.

By purchasing and using this product, the user accepts responsibility for safe setup, safe operation, legal compliance, maintenance, flight planning, and risk management.
