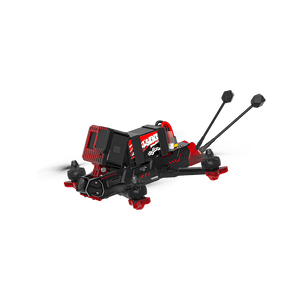

The CineFlow 5 O4 6S HD is a 5-inch cinematic freestyle BNF drone designed for pilots who want clean DJI O4 footage, strong 6S performance, easy maintenance, and a frame layout with reduced propeller view.

It combines an H-shaped frame design, DJI O4 Air Unit Pro, BLITZ Mini F7 Flight Controller, BLITZ Mini E55R 4-IN-1 ESC, XING2 2207 2050KV motors, pre-installed GPS, quick-release side panels, and a rear-mounted XT60 battery plug with Anti-Spark Filter.

This drone is designed for cinematic freestyle, fast chasing, everyday HD FPV flying, and action-camera use. It is not a complete Ready-to-Fly set and still requires compatible goggles, radio controller, battery, charger, and setup checks before the first flight.

Highlights

Innovative H-Shaped Frame Design
The CineFlow 5 uses an H-shaped frame layout designed to reduce propellers in view while still allowing flexible freestyle handling.

This makes it a practical choice for pilots who want cleaner DJI O4 footage without moving to a larger long-range platform. The design is suitable for cinematic freestyle, action-camera flying, chasing, and smooth HD FPV recording.

Quick-Release Side Panels
The quick-release side panels help protect internal electronics from debris and make maintenance easier. They also help keep the build cleaner by reducing exposed wiring and cable clutter, while still allowing access for inspection, maintenance, and repairs.

DJI O4 Air Unit Pro – HD Recording and Digital FPV
The DJI O4 Air Unit Pro provides high-quality digital FPV video and onboard recording.

With its 1/1.3-inch image sensor, 155° ultra-wide field of view, D-Log M support, RockSteady 3.0+ stabilization, 1080p/100fps live view, and up to 4K/120fps onboard recording capability, the O4 Air Unit Pro is well suited for cinematic freestyle and high-quality FPV footage.

Low Hover Throttle and Strong 6S Performance
The CineFlow 5 is designed for strong 6S performance and efficient hover behavior. The manufacturer states that the CineFlow 5 can achieve down to 17% hover throttle under iFlight laboratory test conditions with a Fullsend 6S 1480mAh 150C battery.

Real hover throttle and flight time depend on battery, payload, propellers, wind, temperature, throttle use, and flying style.

High-Performance BLITZ Mini F7 Stack
The CineFlow 5 uses a BLITZ Mini F7 Flight Controller together with a BLITZ Mini E55R 4-IN-1 ESC. The E55R ESC is designed for high-intensity 6S flying and uses larger MOS components with up to 65A burst current, supporting stable power delivery and improved heat dissipation during demanding maneuvers.

Built-In GPS Module
The CineFlow 5 includes a pre-installed GPS module with protective TPU cover. GPS can support coordinates, telemetry, flight logging, and Betaflight GPS Rescue after correct configuration and testing by the pilot.

Important: GPS Rescue is not enabled by default and must not be treated as a guaranteed return-to-home function. It must be configured, checked, and tested carefully before use.

Rear-Mounted Battery Plug with Anti-Spark Filter
The rear-mounted XT60 battery plug helps with cleaner cable routing and can reduce the risk of battery leads reaching the propellers.

The integrated Anti-Spark Filter helps reduce plug-in spark, protects the XT60 connector from unnecessary wear, and helps reduce sudden voltage and current spikes when connecting the battery.

Front-Mounted DJI O4 Air Unit
The front-mounted Air Unit layout improves cooling access and keeps the DJI O4 Air Unit Pro easier to service. This layout also helps avoid unnecessary coaxial cable replacement during normal maintenance.

Integrated Action Camera Base Mount
The CineFlow 5 includes an integrated action-camera base mount for compatible GoPro-style TPU mounts. This provides a clean mounting position for cinematic footage while keeping the overall design more integrated.

Reinforced Arm Base
The strengthened arm base improves durability in a high-stress area of the frame. This is especially useful for freestyle and chasing flights where the frame may experience higher mechanical loads.

BNF Factory Setup

This drone is delivered as a BNF, which means Bind-and-Fly.

It is assembled, factory configured, and tested before shipment. However, BNF does not mean Ready-to-Fly. The drone still needs to be bound to a compatible radio controller before the first flight.

Before the first flight, check all screws, motor direction, propeller orientation, receiver binding, failsafe behavior, GPS status, video link, OSD, Betaflight modes, and voltage warning settings.

ReadyFly Kits – Complete FPV Sets Available

This product is sold as a BNF drone.

BNF means Bind-and-Fly: the drone is assembled, tuned, and equipped with the selected receiver and DJI O4 video system, but it still needs to be bound to a compatible radio controller before flight.

If you need a complete FPV setup, we also offer ReadyFly Kits or compatible accessory bundles in our shop. These make it easier to combine suitable goggles, radio controller, batteries, charger, propellers, and accessories.

Choose this BNF drone if you already have compatible DJI O4 FPV equipment and a matching radio system.

Choose a ReadyFly Kit or accessory bundle if you want a more complete FPV setup.

Required to Fly

This is a BNF drone, not a complete ReadyFly Kit.

You also need:

• Compatible DJI FPV goggles
• Compatible radio controller matching the selected receiver version
• Suitable 6S battery
• 6S-compatible LiPo balance charger
• microSD card for onboard recording, if required

Not included with the BNF drone:

• Battery
• Charger
• FPV goggles
• Radio controller
• microSD card
• Action camera

Choose the Correct Receiver Version

Please choose the receiver version that matches your radio controller.

Available receiver versions:

• For DJI FPV Controller 2 & 3
• TBS Crossfire NANO RX
• ELRS 2.4GHz RX
• ELRS 868/915MHz RX

The DJI O4 Air Unit Pro is responsible for video transmission. The selected receiver/control version determines how the drone receives control commands from your radio controller.

DJI Controller Version
Choose the DJI Controller version if you want to control the drone with DJI FPV Remote Controller 2 or DJI FPV Remote Controller 3.

This version is configured for DJI SBUS control. The DJI Controller version does not have an additional ELRS or Crossfire receiver.

Important: The DJI Controller version is intended for DJI remote control use. If you want to use ELRS or TBS Crossfire later, a separate receiver must be installed and configured correctly. This may require wiring changes, disconnecting DJI SBUS, or using another UART.

ELRS 2.4GHz Version
Choose this version if you use an ELRS 2.4GHz radio controller, for example an iFlight Commando 8 or Commando 14 ELRS 2.4GHz.

ELRS 868/915MHz Version
Choose this version only if your radio controller or external module supports ELRS 868/915MHz.

ELRS 2.4GHz and ELRS 868/915MHz are not compatible with each other.

TBS Crossfire Version
Choose this version if you use a TBS Crossfire radio system or a compatible Crossfire module.

If you are not sure which version matches your radio controller, please contact us before ordering.

Product Images and Variant Notice

Product images are for display and reference only. Some images may be generic manufacturer photos and may not show the exact antenna layout, receiver antenna length, battery mounting, GPS position, props, side-panel details, or small details of every available variant.

The final configuration depends on the selected receiver version, production batch, and product variant.

Battery Recommendations

This drone is designed for 6S batteries.

Most pilots use batteries between 1380mAh and 2400mAh.

Freestyle / responsive flying:

6S 1380–1550mAh LiPo with high discharge rate

Cinematic / GoPro-style flying:

6S 1550–1850mAh LiPo with high discharge rate

Longer smooth cruising:

6S 1850–2400mAh LiPo with high discharge rate

Maximum endurance / smooth cruising only:

DOGCOM 6S1P 4000mAh Li-Ion

DOGCOM 6S1P 5000mAh Li-Ion

Important Li-Ion Note:

Li-Ion batteries are recommended only for smooth cruising and endurance-oriented flying. They are not suitable for aggressive freestyle, racing, repeated punch-outs, or high-current flying.

Li-Ion batteries behave differently from LiPo batteries and may require adjusted Betaflight voltage warnings.

Action Camera Support

The CineFlow 5 has an integrated action-camera base mount and can carry a GoPro or similar action camera when a compatible TPU mount is used.

Adding an action camera increases takeoff weight, changes flight behavior, increases current draw, and usually reduces flight time.

Recommended Accessories

Default Propeller: Nazgul F5 Tri-Blade Prop

Optional Propeller: GEMFAN Hurricane MAX 51377 Prop for Nazgul

Freestyle Battery: DOGCOM 6S 1550mAh 150C Ultra Series Battery

Cinematic Battery: DOGCOM 6S 1850mAh 150C Battery

Longer Cruising Battery: DOGCOM 6S 2200mAh 150C Battery

Maximum Endurance: DOGCOM 6S1P 5000mAh Li-Ion Battery

Charger: HOTA D6 Pro 650W 1–6S Dual Channel AC/DC Smart Charger

GoPro Mount: 2RAW Slim GoPro TPU Mount

TPU Parts: CineFlow 5 TPU Parts

ND Filters: iFlight O4 Air Unit Pro ND Filters

Technical Specifications

Product Name: CineFlow 5 O4 HD BNF

Product Type: 5-inch BNF cinematic freestyle FPV drone

Recommended Skill Level: Intermediate to experienced FPV pilots

Video System: DJI O4 Air Unit Pro

Receiver Options: DJI FPV Controller 2 & 3, TBS Crossfire NANO RX, ELRS 2.4GHz RX, ELRS 868/915MHz RX, depending on selected variant

Geometry: H-shaped

Frame Wheelbase: 222mm

Flight Controller: BLITZ Mini F7 Flight Controller

ESC: BLITZ Mini E55R 4-IN-1 ESC

ESC Burst Current: up to 65A, manufacturer-stated

Motor: XING2 2207 2050KV

Propellers: Nazgul F5 Propellers

Battery Input: 6S

Recommended Battery Type: 6S LiPo

Common LiPo Battery Range: 1380mAh–2400mAh

Li-Ion Compatibility: 6S1P 4000mAh / 5000mAh Li-Ion only for smooth cruising

Dimensions: 213 × 209 × 42mm

Weight: approx. 499g ±5g without battery

Approx. Takeoff Weight: approx. 741g ±5g with 6S 1400mAh battery

Maximum Speed: approx. 190km/h

Maximum Takeoff Altitude: approx. 7000m

Maximum Hover Time: approx. 12 minutes, manufacturer-stated value

Maximum Flight Distance: approx. 5km, manufacturer-stated value

Maximum Wind Resistance: Level 7, manufacturer-stated

Operating Temperature Range: -20°C to 40°C

Antennas: Dual DJI O4 antennas plus receiver antenna depending on selected receiver version

GPS: Pre-installed

GNSS Support: GPS + SBAS + Galileo + QZSS + GLONASS

Important Note About Flight Time

The manufacturer-stated hover time is measured under controlled hover conditions and should not be understood as normal freestyle or cinematic flight time.

Actual flight time depends on battery, throttle use, wind, action-camera weight, propellers, temperature, and pilot style.

DJI O4 Air Unit Pro Specifications

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens Field of View: 155°

ISO Range: 100–25600

Live View Resolution: 1080p/100fps H.265

Onboard Recording: up to 4K/120fps supported by DJI O4 Air Unit Pro

Video Format: MP4

Maximum Video Bitrate: 130Mbps

Color Mode: Normal / D-Log M

Stabilization: RockSteady 3.0+ / stabilization off for Gyroflow use

Live View Quality: 1080p at 100fps

Operating Frequency: 5.170–5.250GHz and 5.725–5.850GHz, region dependent

Transmitter Power: Region dependent

Communication Bandwidth: max. 60MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported microSD Cards: up to 512GB

Operating Temperature: -10°C to 40°C

Air Unit Weight Including Camera Module: approx. 32g

Transmission Module Dimensions: 33.5 × 33.5 × 13mm

DJI O4 Compatibility

Compatible with:

• DJI Goggles 3
• DJI Goggles N3
• DJI Goggles 2
• DJI Goggles Integra
• DJI FPV Remote Controller 3, when using the DJI Controller version
• DJI FPV Remote Controller 2, when using the DJI Controller version

Other radio controllers can be used only if they match the installed receiver version, for example ELRS or Crossfire.

Video Transmission Range

The maximum video transmission range depends on goggles, region, environment, antenna orientation, interference, terrain, and local regulations.

Reference values with DJI Goggles 3 / DJI Goggles N3:

FCC: up to 15km

CE: up to 8km

SRRC: up to 8km

In Europe, CE limits apply.

Do not treat the maximum transmission range as a guaranteed flight distance.

Packing List

1× CineFlow 5 O4 6S HD BNF

2× Antennas

1× Anti-Slip Battery Pad

2× 5-Inch Propeller Pairs

2× Battery Straps

Setup Notes

The drone is delivered with a factory-installed Betaflight preset. Before the first flight, no firmware update, no reset, and no Betaflight changes are required.

BNF means the drone still needs to be bound to your compatible radio controller before flight.

Check all screws, motor direction, propeller orientation, receiver binding, failsafe behavior, OSD, GPS status, video link, and voltage warning settings before the first flight.

GPS Rescue is not enabled by default. It must be configured, checked, and tested by the pilot before use.

We strongly recommend not flashing firmware, not resetting Betaflight, and not applying random presets unless you have saved a backup and know exactly which target and configuration are required.

Changelog

March 11, 2025: The material of some TPU parts in the BNF version was changed to injection-molded parts.

Important Note – GPS Rescue

GPS Rescue is a Betaflight safety feature that may help the drone return toward the home point after correct configuration.

It is not a certified return-to-home system and must not be treated as a guarantee that the drone will return safely.

Incorrect GPS Rescue settings, insufficient satellites, wrong failsafe setup, low battery, strong wind, pilot error, terrain, or RF signal loss can still lead to crashes or loss of the drone.

Always test GPS Rescue carefully in a safe area before relying on it, and always keep enough battery reserve for the return flight.

FAQ

What does BNF mean?
BNF means Bind-and-Fly. The drone is assembled and factory configured, but it still needs to be bound to your compatible radio controller before flight.

Is this a complete Ready-to-Fly set?
No. This is only the BNF drone. Battery, charger, FPV goggles, radio controller, microSD card, and action camera are not included.

If you need a complete setup, please check our ReadyFly Kits or compatible accessory bundles.

Which receiver version should I choose?
Choose the version that matches your radio controller.

• Use DJI Controller version for DJI FPV Remote Controller 2 or 3.
• Use ELRS 2.4GHz for suitable ELRS 2.4GHz radios.
• Use ELRS 868/915MHz only for suitable ELRS 868/915MHz radios or modules.
• Use TBS Crossfire if you fly with Crossfire.

Is GPS included?
Yes. The CineFlow 5 O4 6S HD includes pre-installed GPS.

Is GPS Rescue enabled by default?
No. GPS Rescue is not enabled by default. It must be configured, checked, and tested by the pilot before use.

Can I use Li-Ion batteries?
Yes, but only for smooth cruising and endurance-oriented flying. Li-Ion batteries are not suitable for aggressive freestyle, racing, repeated punch-outs, or high-current flying. Voltage warnings may need adjustment.

Can I use a GoPro or action camera?
Yes. The frame has an integrated action-camera base mount and can carry a GoPro or similar camera with a compatible TPU mount. Additional payload increases weight and usually reduces flight time.

Is this drone suitable for beginners?
This drone is recommended for intermediate to experienced FPV pilots. Beginners should choose a suitable ReadyFly Kit or train on a smaller, more beginner-friendly drone first.

Can I fly in rain or wet conditions?
No. Do not fly in rain, snow, wet grass, fog, or high humidity. Damage caused by water or moisture is not considered a normal manufacturing defect.

Safety Notice

FPV drones are high-performance aircraft and must be operated responsibly.

Always follow local laws and regulations.

Remove the propellers before configuration, receiver testing, firmware work, or motor testing on the bench.

Always inspect the drone before every flight.

Do not fly with damaged propellers, loose screws, damaged antennas, damaged batteries, wet connectors, or visible electronic damage.

Crash damage, water damage, corrosion, incorrect firmware flashing, wrong Betaflight configuration, incorrect wiring, incorrect receiver setup, incorrect battery use, unsafe operation, or poor flight planning are not considered normal manufacturing defects.

By purchasing and using this product, the user accepts responsibility for safe setup, safe operation, legal compliance, maintenance, flight planning, and risk management.
