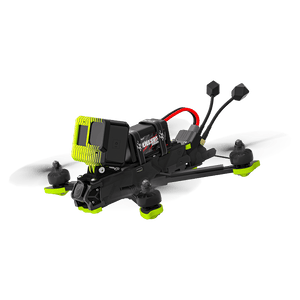

The Nazgul DC5 ECO O4 is a lightweight 5-inch DeadCat FPV drone designed for pilots who want a clean HD view, DJI O4 image quality, and a more affordable alternative to premium Evoque models.

Its DeadCat geometry helps keep propellers out of the camera view, making it especially practical for cinematic freestyle, smooth cruising, action-camera footage, and general HD FPV flying. The frame combines carbon fiber with an aluminum camera mount, while the integrated Anti-Spark Filter, built-in buzzer, receiver mounting area, and DJI O4 Air Unit Pro make it a clean and practical BNF platform.

Compared with the Nazgul Evoque F5 V3 O4, the DC5 ECO is the lighter and more affordable DeadCat option. The F5 V3 remains the premium model with Evoque side panels, switchable DeadCat / True X configuration, and higher-end frame design.

Highlights

Lightweight and Durable
The Nazgul DC5 ECO combines a carbon fiber frame with an aluminum camera mount, creating a lightweight yet robust platform for HD FPV flying. Its DeadCat geometry helps reduce propellers in view, making it well suited for clean DJI O4 footage, cinematic flying, and action-camera use.

Anti-Spark Filter
Connecting a high-voltage LiPo battery can create a visible spark at the XT60 connector, caused by the initial current rush into the ESC and capacitor system. The integrated Anti-Spark Filter helps reduce plug-in spark, protects the connector from unnecessary wear, and helps reduce sudden voltage and current spikes during battery connection.

DJI O4 Air Unit Pro Low-Latency Digital Transmission
The DJI O4 Air Unit Pro provides a clear, low-latency digital FPV feed with up to 1080p/100fps live view, depending on goggles, region, environment, and local regulations. It is designed for a crisp real-time image in the goggles, even in challenging RF conditions.

The O4 Air Unit Pro also supports onboard recording up to 4K/120fps, giving pilots high-quality footage directly from the air unit without requiring an additional HD camera for every flight.

4K Stabilized Video with 155° Ultra-Wide Angle
With its 1/1.3-inch image sensor, 155° ultra-wide field of view, and support for RockSteady stabilization or gyro data for Gyroflow, the DJI O4 Air Unit Pro delivers high-quality onboard footage for freestyle, cinematic, and cruising flights.

ND Filter Support
Compatible ND filters can be used to better control exposure, shutter speed, and motion blur in bright conditions. Please use ND filters designed for the iFlight O4 Air Unit Pro setup, as DJI original O4 Pro filters may not fit this drone design correctly.

Practical Maintenance Features
The DC5 ECO is equipped with a built-in buzzer and a dedicated receiver mounting area, making setup, maintenance, and receiver access easier and cleaner.

Flexible Build Layout
The frame provides standard 20×20mm and 30.5×30.5mm mounting options, offering flexibility for maintenance, repairs, and future customization. This makes the platform easier to service and compatible with many common FPV electronics layouts.

Pre-Installed BLITZ Mini M10 GPS V2
GPS can support positioning, telemetry, and Betaflight GPS Rescue when correctly configured and tested by the pilot. GPS Rescue is not enabled by default and should not be treated as a replacement for safe piloting, a strong radio link, and proper failsafe setup.

BNF Factory Setup

This drone is delivered as a BNF, which means Bind-and-Fly.

It comes assembled and factory configured with a Betaflight preset already installed. No firmware update, reset, or Betaflight changes are required before the first flight.

The drone still needs to be bound to a compatible radio controller before flying. Angle Mode is enabled by default to make first flights safer and reduce the risk of accidents during initial setup.

ReadyFly Kits – Complete FPV Sets Available

This product is sold as a BNF drone.

BNF means Bind-and-Fly: the drone is assembled, tuned, and equipped with the selected receiver/video system, but it must still be bound to a compatible radio controller before flying.

If you need a complete FPV setup, we also offer ReadyFly kits in our shop. Our ReadyFly kits allow you to mix and match compatible components such as goggles, radio controller, batteries, charger, and accessories.

Choose this BNF drone if you already have compatible equipment.

Choose a ReadyFly kit if you want a more complete FPV setup with the main components selected together.

Required to Fly

This is a BNF drone, not a complete ReadyFly kit.

You still need:

• Compatible FPV goggles
• Compatible radio controller matching the selected receiver version
• Suitable 6S battery
• 6S-compatible LiPo/Li-Ion balance charger
• microSD card for onboard recording, if required

Not included with the BNF drone:

• Battery
• Charger
• Goggles
• Radio controller
• microSD card
• Action camera
• Choose the Correct Receiver Version

Please choose the receiver version that matches your radio controller.

Available receiver versions:

• DJI FPV Remote Controller 2/3
• TBS Crossfire Nano RX
• iFlight ELRS 2.4GHz RX
• iFlight ELRS 868/915MHz RX

The DJI O4 Air Unit Pro handles the video link. The selected receiver/control version determines how the drone receives radio-control input.

DJI Controller Version
Choose the DJI version if you want to control the drone with DJI FPV Remote Controller 2 or DJI FPV Remote Controller 3.
This version is configured for DJI SBUS control. Additional SBUS and GND wires are connected to the flight controller for DJI remote-control input.

Important: The DJI Controller version is intended for DJI remote control use. To use ELRS or TBS Crossfire instead, a separate receiver must be installed and correctly configured. This may require disconnecting the DJI SBUS wiring or using another UART for receiver input.

ELRS 2.4GHz Version
Choose this version if you use an ELRS 2.4GHz radio, such as an iFlight Commando 8 or Commando 14 ELRS 2.4GHz.

ELRS 868/915MHz Version
Choose this version only if your radio or module supports ELRS 868/915MHz.
ELRS 2.4GHz and ELRS 868/915MHz are not compatible with each other.

TBS Crossfire Version
Choose this version if you use a TBS Crossfire radio or module.
If you are unsure which version fits your radio, contact us before ordering.

Battery Recommendations

This drone is designed for 6S batteries.

Most pilots use batteries between 1380mAh and 2400mAh.

Freestyle / responsive flying:

• 6S 1380–1550mAh high-discharge LiPo
• Cinematic / GoPro flying:
• 6S 1550–1850mAh high-discharge LiPo

Longer cruising:

• 6S 1850–2400mAh high-discharge LiPo

Maximum endurance / smooth cruising only:

• DOGCOM 6S1P 4000mAh Li-Ion
• DOGCOM 6S1P 5000mAh Li-Ion

Important Li-Ion note:

Li-Ion batteries are only recommended for smooth cruising and endurance-focused flying. They are not suitable for aggressive freestyle, racing, repeated punch-outs, or high-current flying.

Li-Ion batteries behave differently from LiPo batteries and may require adjusted Betaflight voltage warnings.

Action Camera Support

The DC5 ECO frame can be used with compatible action-camera TPU mounts.

A GoPro-style action camera can be mounted for cinematic footage, but the final flight feel and flight time depend heavily on battery size, camera weight, propeller choice, and flying style.

Recommended Accessories:

Default Propeller: Nazgul F5 Tri-blade Prop

Optional Propeller: GEMFAN Hurricane MAX 51377 Prop (for Nazgul)

Freestyle: DOGCOM 6S 1550mAh 150C Ultra Series Battery

Cinematic: DOGCOM 6S 1850mAh 150C Battery

Long Range: DOGCOM 6S 2200mAh 150C Battery

Max. Range: DOGCOM 6S1P 5000mAh Li-Ion Battery

Charger: HOTA D6 Pro 650W 1-6S Dual Channel AC/DC Smart Charger

GoPro Mount: 2RAW Slim GoPro TPU Mount

TPU 3D Prints: DC5 / XL5 TPU 3D Prints

Technical Specifications

Product Name: Nazgul DC5 ECO V1.1 6S O4 HD BNF

Geometry: DC / DeadCat

Frame Wheelbase: 240mm

Flight Controller: BLITZ F7 Flight Controller

ESC: BLITZ E55 4-IN-1 ESC

Video System: DJI O4 Air Unit Pro

Motor: XING-E Pro 2207 1800KV

Propellers: Nazgul F5 Tri-Blade Propellers

Recommended Battery: 6S LiPo

Weight: approx. 450g ±5g without battery, manufacturer-stated

Takeoff Weight: approx. 675g ±5g with 6S 1480mAh battery, manufacturer-stated

Dimensions: approx. 193 × 144 × 34mm

Maximum Speed: up to 190km/h in Manual Mode, manufacturer-stated

Maximum Takeoff Altitude: 7000m, manufacturer-stated

Maximum Hover Time: approx. 11.5 minutes with 6S 1550mAh battery, manufacturer-stated hover value

Maximum Wind Resistance: Level 7, manufacturer-stated

Operating Temperature: -10°C to 40°C

Antennas: Albatross V2 5.8GHz dual antennas

GPS: optional, depending on selected version

GNSS: GPS + SBAS + Galileo + QZSS + GLONASS, GPS version only

Important Note About Flight Time
Manufacturer hover time is measured under controlled hover conditions and should not be understood as normal freestyle or cinematic flight time. Real flight time depends on battery, throttle use, wind, action-camera weight, propellers, temperature, and pilot style.

DJI O4 Air Unit Pro Specifications

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens Field of View: 155°

ISO Range: 100–25600

Onboard Video Recording: up to 4K/120fps

Video Format: MP4

Maximum Video Bitrate: 130Mbps

Color Mode: Standard / D-Log M

Stabilization: RockSteady 3.0+ / stabilization off for Gyroflow use

Live View Quality: up to 1080p/100fps

Operating Frequency: 5.170–5.250GHz and 5.725–5.850GHz, region dependent

Communication Bandwidth: up to 60MHz

Antenna: dual antennas

Internal Storage: 4GB

Supported microSD Card: up to 512GB

DJI O4 Compatibility

Compatible with:

• DJI Goggles 3
• DJI Goggles N3
• DJI Goggles 2
• DJI Goggles Integra
• DJI FPV Remote Controller 3, when using DJI control version
• DJI FPV Remote Controller 2, when using DJI control version

Other radios can be used only if they match the installed receiver version, such as ELRS or Crossfire.

Video Transmission Range

The maximum video transmission range depends on goggles, region, environment, antenna positioning, interference, and local regulations.

Manufacturer-stated reference values may differ between FCC, CE, and SRRC regions. In Europe, CE limits apply.

Do not treat maximum transmission range as a guaranteed flight distance.

Compatibility Notes

This is a DJI O4 drone. It is not the same as an analog, DJI O3, Walksnail, or HDZero drone.

The DJI O4 Air Unit Pro handles the video link. The receiver or DJI control configuration handles radio control.

Different receiver versions are wired and configured differently. Choose the version that matches your radio controller.

Packing List

1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF

2 x Antennas

1 x Battery Pad

2 x Propeller Pairs

Setup Notes

1. The drone comes with a factory Betaflight preset installed. No firmware update, reset, or Betaflight changes are necessary before the first flight.
2. BNF means the drone must still be bound to your compatible radio controller before flying.
3. Angle Mode is enabled by default to make first flights safer and reduce the risk of accidents during initial setup.
4. GPS Rescue is not enabled by default. It must be configured, checked, and tested by the pilot before use.
5. We strongly recommend not flashing firmware, resetting Betaflight, or applying random presets unless you have saved a backup and know exactly which target and configuration are required.

FAQ

What does BNF mean?
BNF means Bind-and-Fly. The drone is assembled and factory configured, but it must still be bound to your compatible radio controller before flying.

Is this a complete ready-to-fly set?
No. This is the BNF drone only. Battery, charger, goggles, radio controller, microSD card, and action camera are not included.

If you need a complete setup, please check our ReadyFly kits, where compatible components can be selected together.

Which receiver version should I choose?
Choose the version that matches your radio controller.

• Use DJI for DJI FPV Remote Controller 2 or 3.
• Use ELRS 2.4GHz for iFlight Commando 8 or Commando 14 ELRS 2.4GHz.
• Use ELRS 868/900MHz only for matching ELRS 868/900MHz radios or modules.
• Use TBS Crossfire if you fly with Crossfire.

Does the drone come preconfigured?
Yes. The drone comes with a factory Betaflight preset installed. No firmware update, Betaflight reset, or configuration change is necessary before the first flight.

Is Angle Mode enabled?
Yes. Angle Mode is enabled by default to make first flights safer and reduce the risk of accidents during initial setup.

Is GPS Rescue enabled by default?
No. GPS Rescue is not enabled by default. It must be configured, checked, and tested by the pilot before use.

Can I use a GoPro or action camera?
Yes. The frame has a front mounting position for a GoPro or similar action camera when used with a compatible mount. Additional payload increases weight and usually reduces flight time.

Can I fly in rain or wet conditions?
No. Do not fly in rain, snow, wet grass, fog, or high moisture conditions. Water or moisture damage is not considered a normal manufacturing defect.

Safety Disclaimer

FPV drones are high-performance radio-controlled aircraft and are not toys.

Always follow local laws and regulations. Fly only in permitted areas, keep a safe distance from people, animals, roads, buildings, and airports, and never fly beyond your skill level.

Always remove propellers when configuring the drone on the bench.

LiPo batteries can be dangerous if charged, stored, transported, or used incorrectly. Always use a suitable LiPo charger and follow battery safety rules.
