ToolKitRC M6DAC V2 | AC 200W | DC 800W | Perfect for FPV Pilots

This compact yet powerful charger features dual-channel technology for simultaneous or separate battery charging. In synchronous mode, you can charge two batteries at up to 28A, while asynchronous mode provides up to 16A per battery. With 200W (AC) and 800W (DC), the M6DAC is your ideal choice for efficiently managing multiple batteries.

Features

Powerful dual output, with smart power distribution

Up to 800W charging power with a maximum 28A charging current

Up to 400W discharge power

Supports both DC (7–28V) and AC (100–240V) inputs

Easy operation with a scroll wheel and single-button navigation

Smart 2.8″ IPS LCD display

Multilingual interface with voice output

USB upgradeable firmware

Comprehensive safety features for reliable operation

Extremely compact size

Specifications

Input voltage: DC 7.0-28.0V @MAX 32A / AC 100-240V @ MAX 220W

Battery type: (Lipo LiHV LiFe Lion LTO) 1-6S / (NiMh) 1-16S (Pb) 1-10S

Balance current: 1000mA @2-6S

Balance accuracy: <0.005V

Charging power: 1-16A @400W *2 (Asynchronous mode) / 28A @700W (Synchronous mode)

Discharge power: 16A @MAX 400A *2（Recycle mode) / 3@ 15W *2 (Normal mode)

USBC: MAX 65W 3.25A @20.0V or Upgraded

USBC Protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC

Battery Voltage: 1.0V-5.0V 1-6S

Internal Resistance: 1-100mR@1-6S

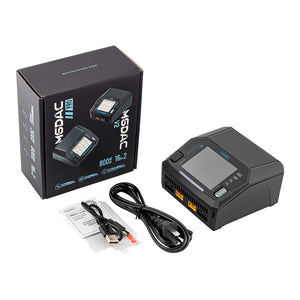

Package includes

M6DAC V2 Charger × 1

AC Input Cable × 1

USB Cable × 1

Quick Manual × 1

Screen Protector × 1
