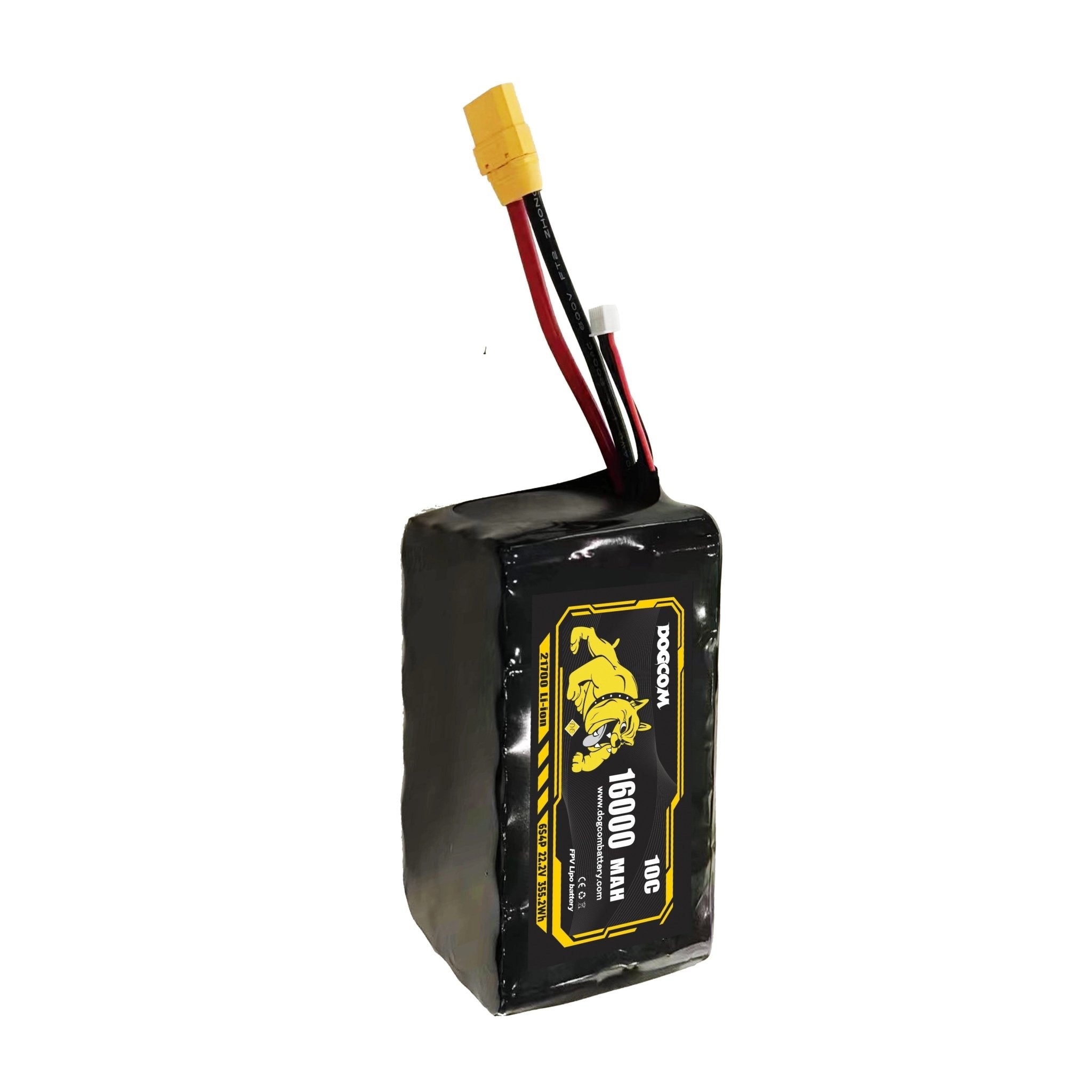

The DOGCOM 16000 mAh 6S4P Li-Ion Battery is the powerhouse solution for pilots pushing the limits of long-range FPV. Built with premium 21700 Li-Ion cells, it delivers massive capacity and reliable performance for large long-range drones such as the Helion 10, Chimera7, CineLR7, and other endurance-focused builds.

With a high energy reserve and stable output, this pack is perfect for 7"–10" quads where maximum airtime and efficiency are critical.
⚠️ Note: This battery is not intended for high-throttle freestyle or racing. For aggressive flying, use a high-discharge LiPo pack.

Highlights

• Huge Capacity: 16000 mAh for unmatched endurance and exploration flights
• 6S4P Configuration: Massive capacity with stable current delivery
• Premium 21700 Cells: High energy density Li-Ion chemistry
• Smooth & Efficient: Optimized for cinematic, cruising, and long-range exploration
• Reliable Connectors: XT90 main plug + JST-XHR balance lead
• Durable Construction: Equipped with temperature-resistant spacers and high-quality components
• Estimated Flight Time: Significantly extended airtime in long-range setups. Actual flight duration may vary depending on wind, altitude, flight speed, payload (e.g., an action camera), and the condition of your propellers or motors.

Technical Specifications

• Cell Type: 21700 Li-Ion Cells
• Nominal Voltage: 3.7 V
• Battery Cells: 24 × 21700 Li-Ion Cells
• Max Charge Voltage: 4.2 V per cell
• Cut-off Voltage: 2.5 V per cell (2.9–3.1 V recommended end-flight)
• Continuous Discharge Rate: 10C
• Operating Temp (Discharge): –20 °C to +75 °C
• Operating Temp (Charge): 0 °C to +50 °C

Pack Overview

• Configuration: 6S4P (22.2 V nominal)
• Capacity: 16000 mAh / 355.2 Wh
• Dimensions: 86 × 127 × 80 mm
• Weight: ~1720 g
• Connector: XT90 + JST-XHR balance lead
• Optimal Ambient Operating Range: 15 °C to 35 °C for performance & longevity

Package Includes

• 1× DOGCOM 16000mAh 6S4P Li-Ion Battery – XT90

Charging Guidelines

• Always use a Li-Ion compatible balance charger — never use a non-compatible charger.
• Charge at 1C or lower (≤16 A for this 16000 mAh pack) for optimal safety and cycle life.
• Do not exceed 2C charge rate.
• Never charge unattended or near flammable materials.
• Do not charge below 0 °C or above 50 °C. Charging outside of this range may cause lithium plating, overheating, or permanent cell damage.
• Stop charging immediately if the battery becomes hot, swollen, or shows abnormal behavior.

Storage Guidelines

• Storage Voltage: Keep at 3.7–3.85 V per cell (~40–60% charge). Do not store fully charged or fully discharged.
• Avoid Drain: Never leave connected to a charger, quad, or device that could slowly discharge it.
• Temperature Control: Store in a cool, dry place (15–25 °C). Avoid high heat, direct sunlight, and freezing conditions.
• Fire Safety: Always store batteries in a fireproof bag, battery storage bag, or fireproof container. We offer approved LiPo-safe storage solutions in our shop.
• Inspection: Periodically check during storage. If swelling, leakage, or abnormal odor is detected, stop using immediately and dispose of safely.

Disclaimer and Safety Guidelines

Safety Reminder: Always supervise charging and keep batteries away from flammable materials. Improper charging, over-charging, or over-discharging can cause overheating, fire, or explosion. Short-circuiting, puncturing, disassembling, or exposing the battery to heat sources may result in serious injury or damage. Always use compatible Li-Ion chargers and inspect batteries regularly—discontinue use immediately if any abnormalities are observed.

Disclaimer: By purchasing and using this product, the user agrees to follow all provided safety instructions. The manufacturer and seller assume no responsibility for damage, injury, or loss caused by improper charging, discharging, storage, handling, or use. The user accepts full responsibility for all associated risks.
